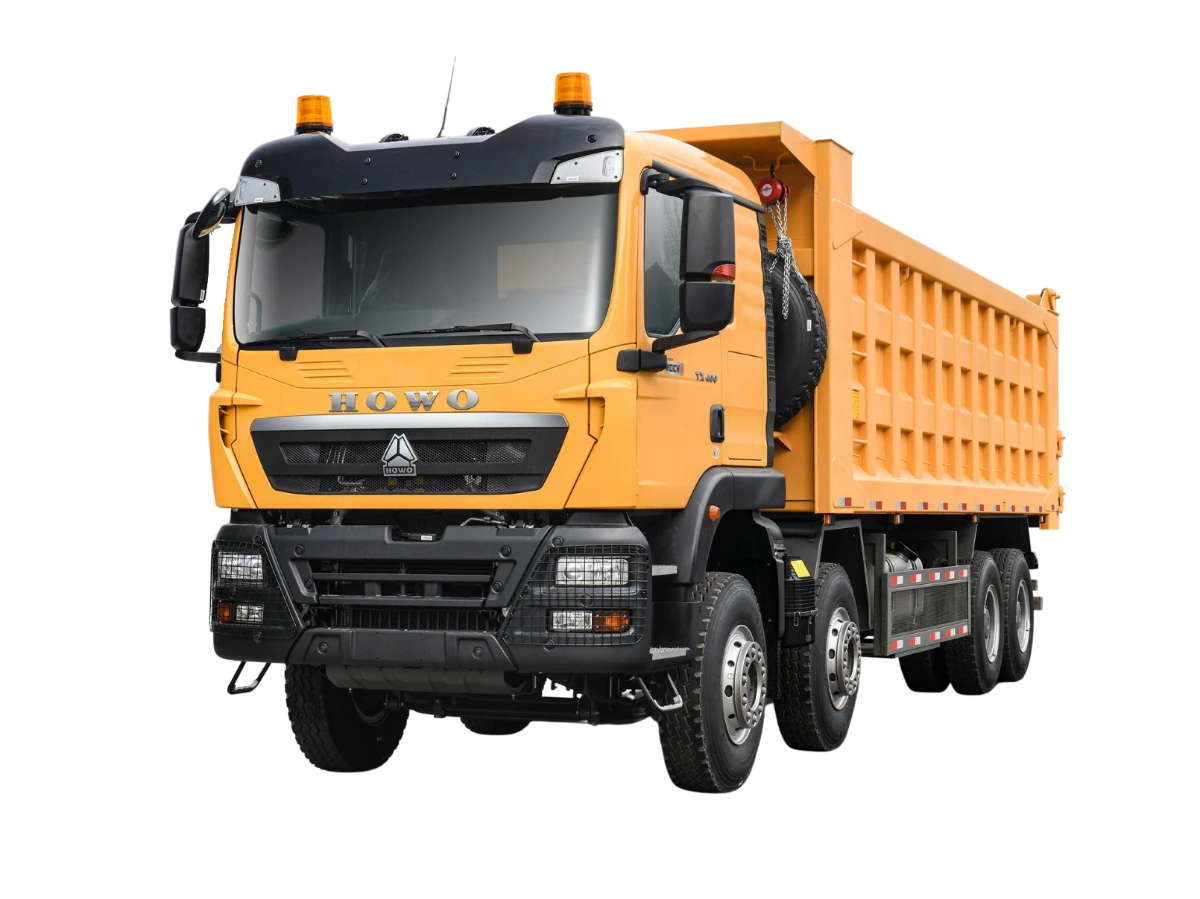

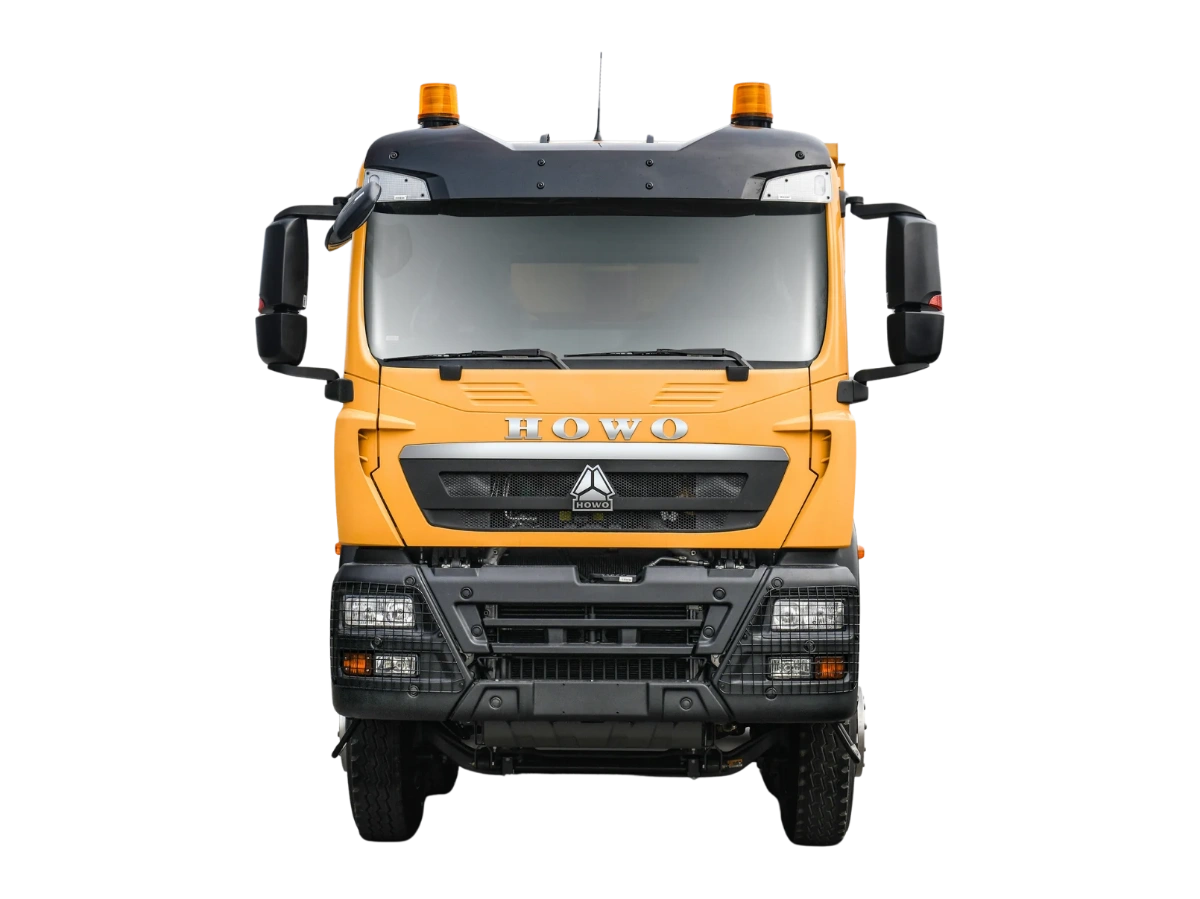

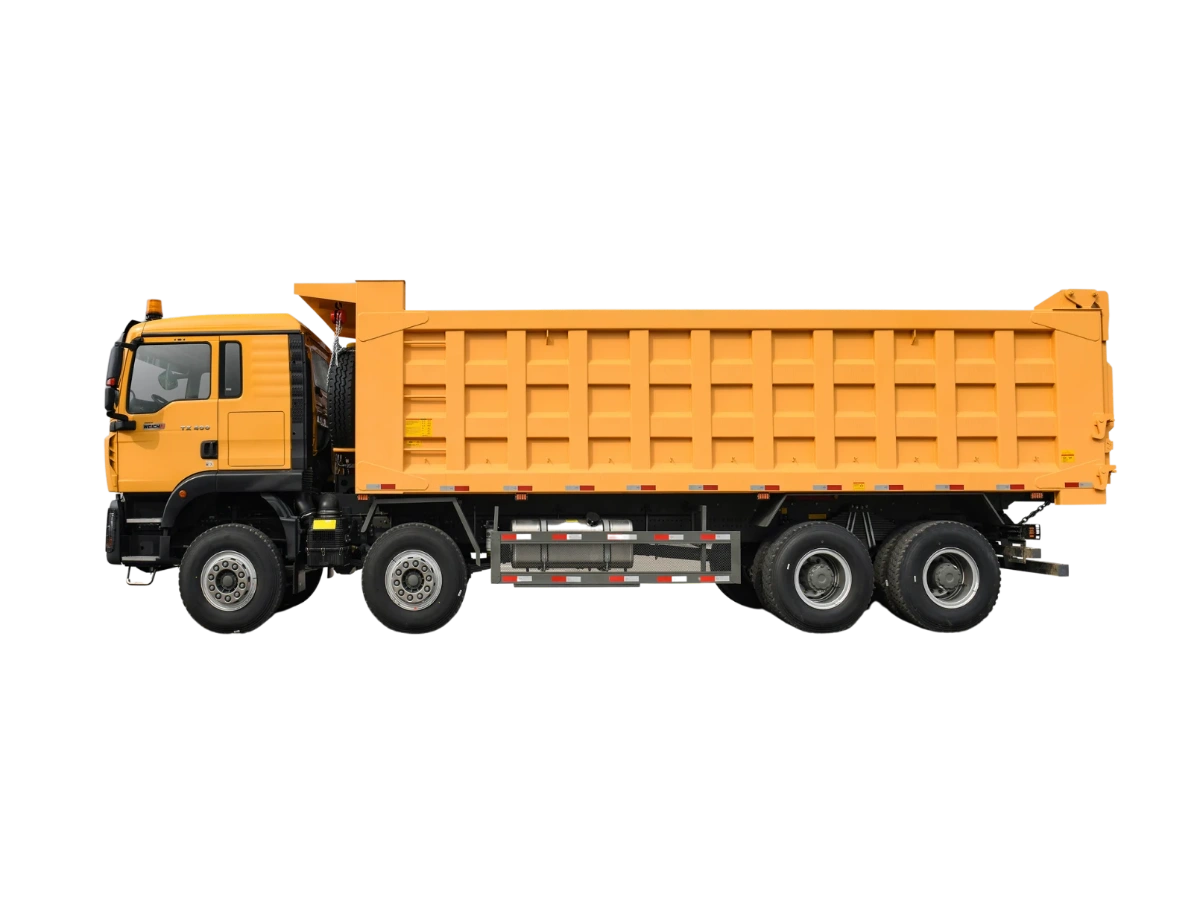

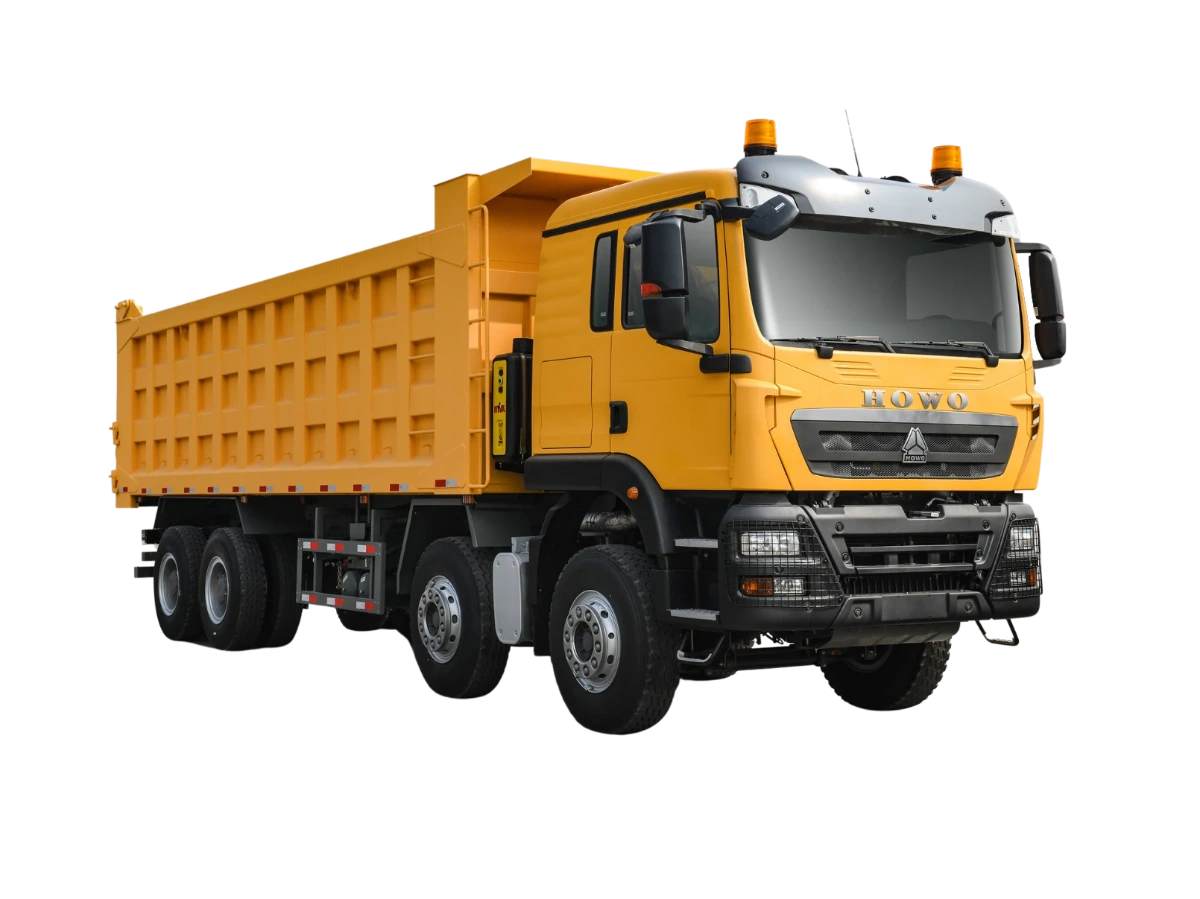

HOWO TX 8X4 Heavy Truck
Conquer the most demanding construction and heavy-haul operations with the HOWO TX 8X4 Heavy Truck. Built by Sinotruk for unmatched strength and reliability, the TX 8X4 is engineered to carry massive loads while maintaining superior stability and performance—making it the ultimate partner for construction sites, mining projects, and long-haul freight.
Key Performance Highlights
- Unmatched Power: Equipped with a high-performance WP12 diesel engine,
- Rugged Durability: Features a reinforced multi-layer frame and heavy-duty suspension system.
- Precision Handling: Paired with a 12-speed HW19712 transmission and hydraulic power steering.
- Driver-Centric Comfort: The H78L High Roof Cab offers two sleepers, full air-conditioning, and an adjustable steering system.
- Heavy-Duty Versatility: Designed for maximum payload capacity and operational efficiency.
Description
| Engine | Engine model: WP12.430 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 430hp(316Kw) at 1900 rpm Maximum torque: 1900Nm at 1000-1400rpm Displacement: 11.596L Bore*stoke: 126mm×155mm |
| Transmission | Model: HW19712, 12 forward and 2 reverse, with PTO |
| Front Axle | Model: VGD95, drum type brake, 9.5T, German technology |
| Rear Axle | Model: MCX16, drum type brake, 16T×2, Double reduction with differential locks between wheels and axles, German technology |
| Chassis | Frame: Double layer with section of 300*80*(8+8)mm Front suspension: semi-elliptic leaf springs Fuel tank: with 400L fuel tank, with locking fuel cap |
| Steering | BOSCH, Hydraulic steering with power assistance |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS |
| Wheel & Tire | Tire: 12.00R20 |
| Driver's cab | TX-U high roof cab, with two sleepers and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, electric window lifte, with AC |
Wheelbase: 1950+3825+1350 mm
Front wheel track: 2048mm
Rear wheel track: 1850 mm
Front overhang: 1500 mm
Rear overhang: 1000 mm
Approach angle(°): 25 mm
Departure angle(°): 47 mm
Body Size: 7600*2300*1500mm;
Permissible loading capacity on chassis: 50000 kg
Curb weight: 20000 kg
Gross vehicle weight: 70000 kg
Front axle loading capacity: 9500 x 2 kg
Rear axle loading capacity: 16000 x 2 kg
