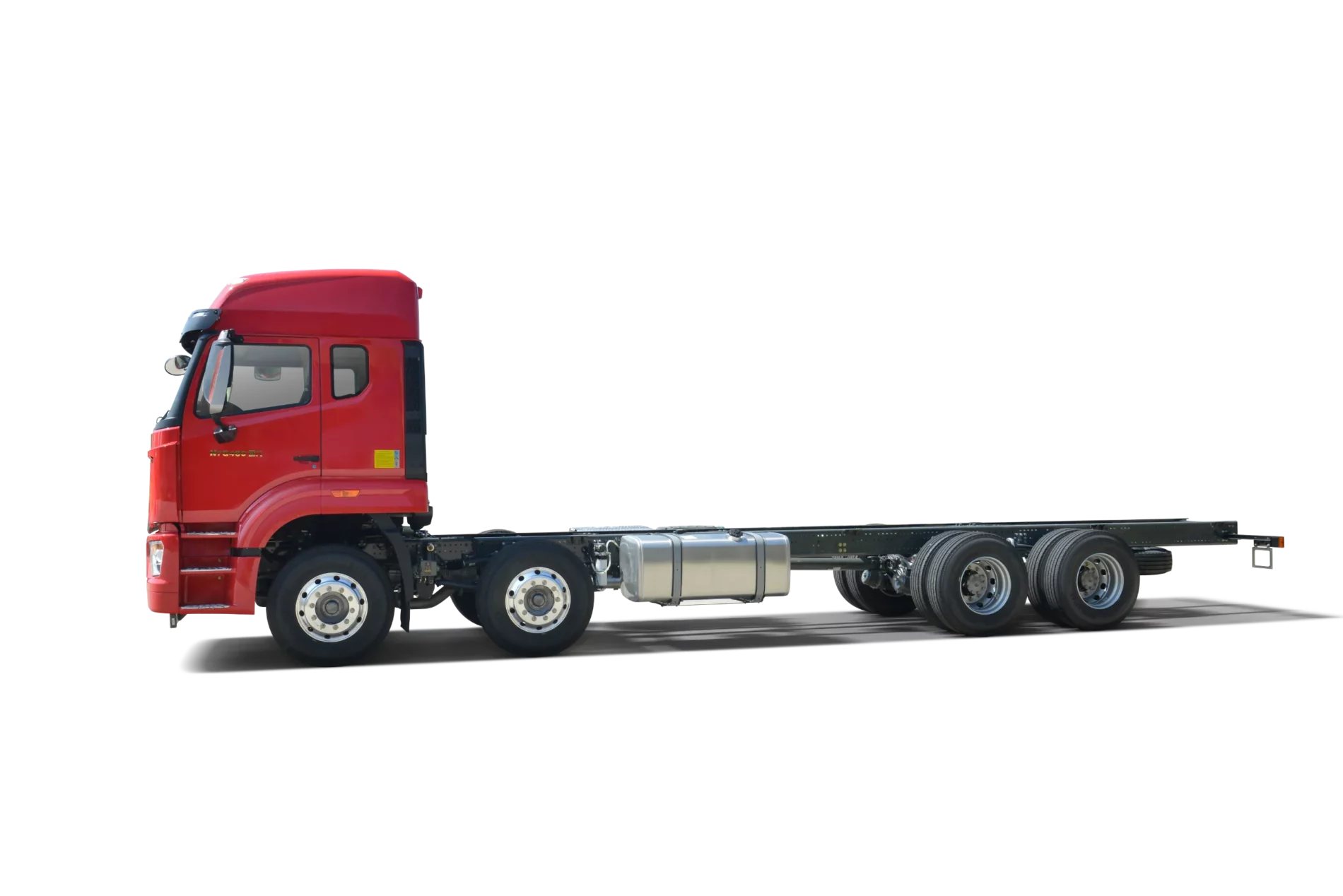

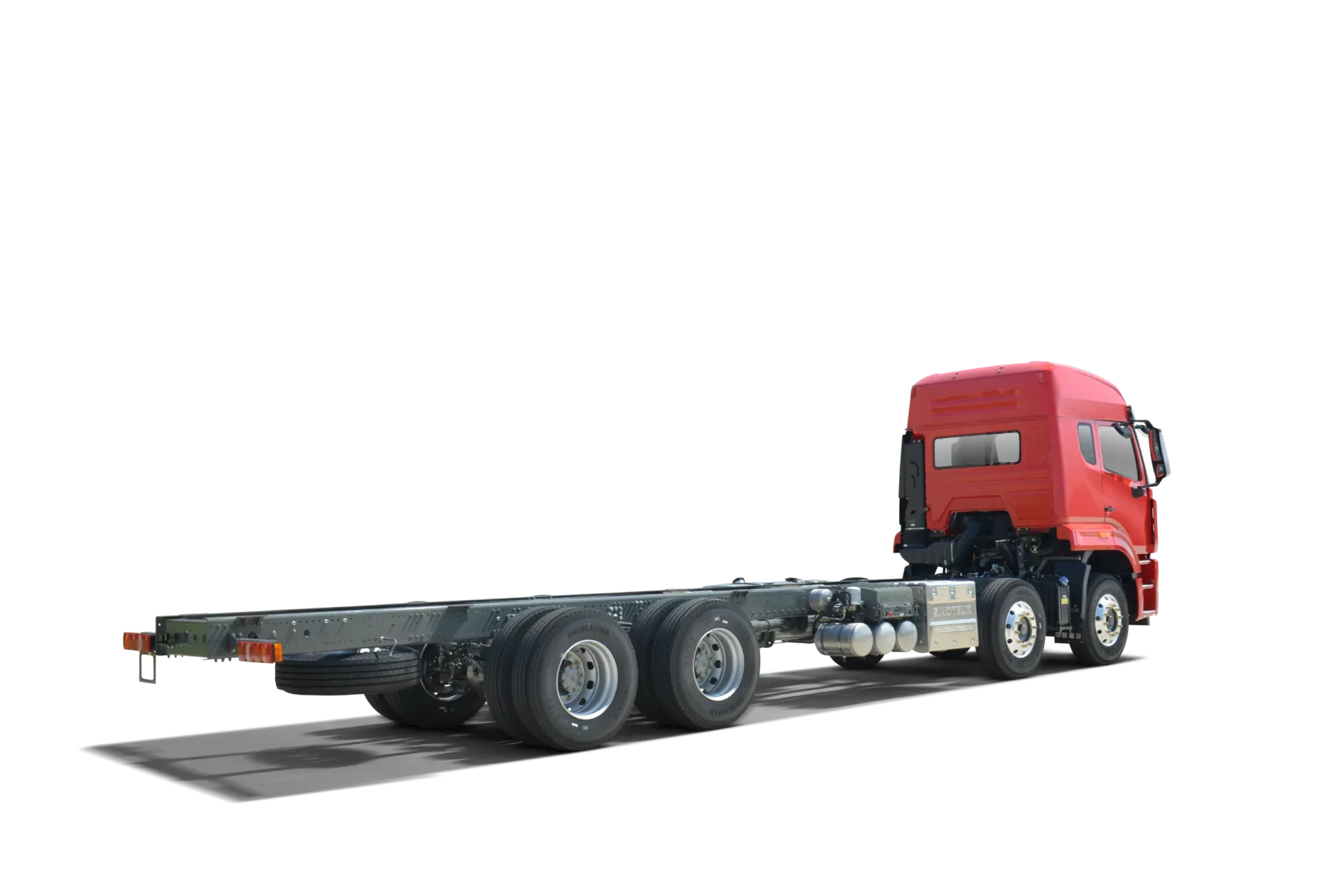

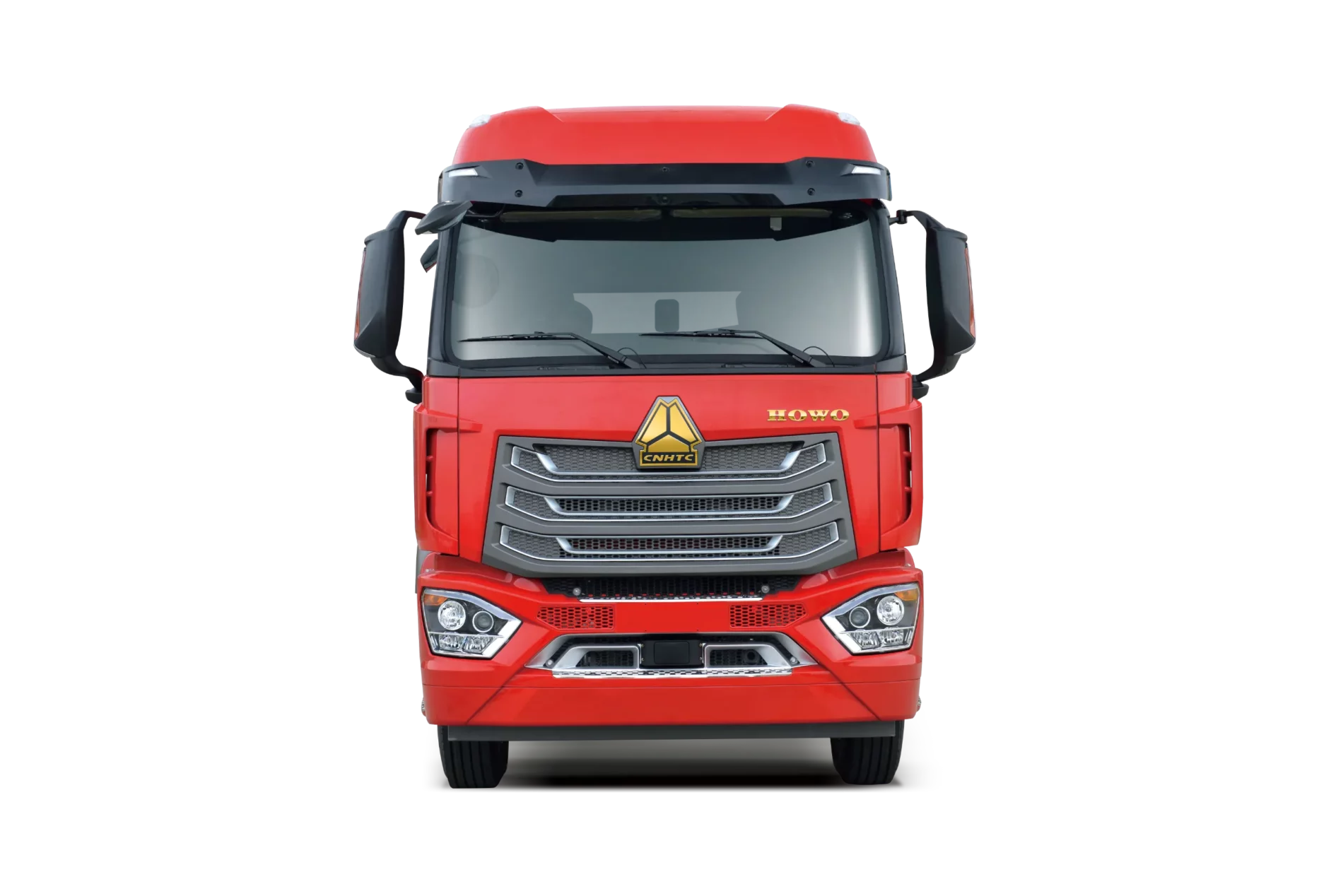

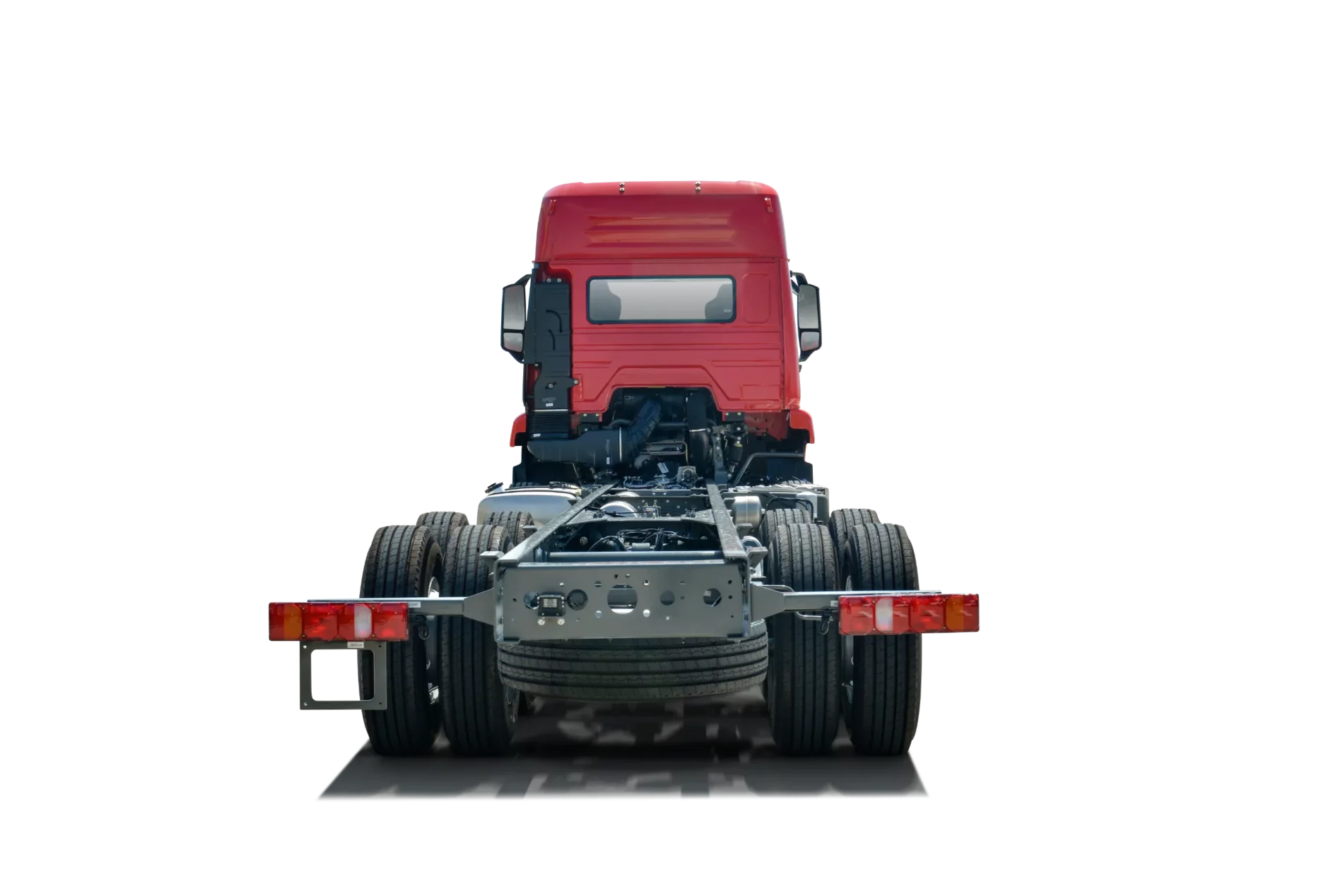

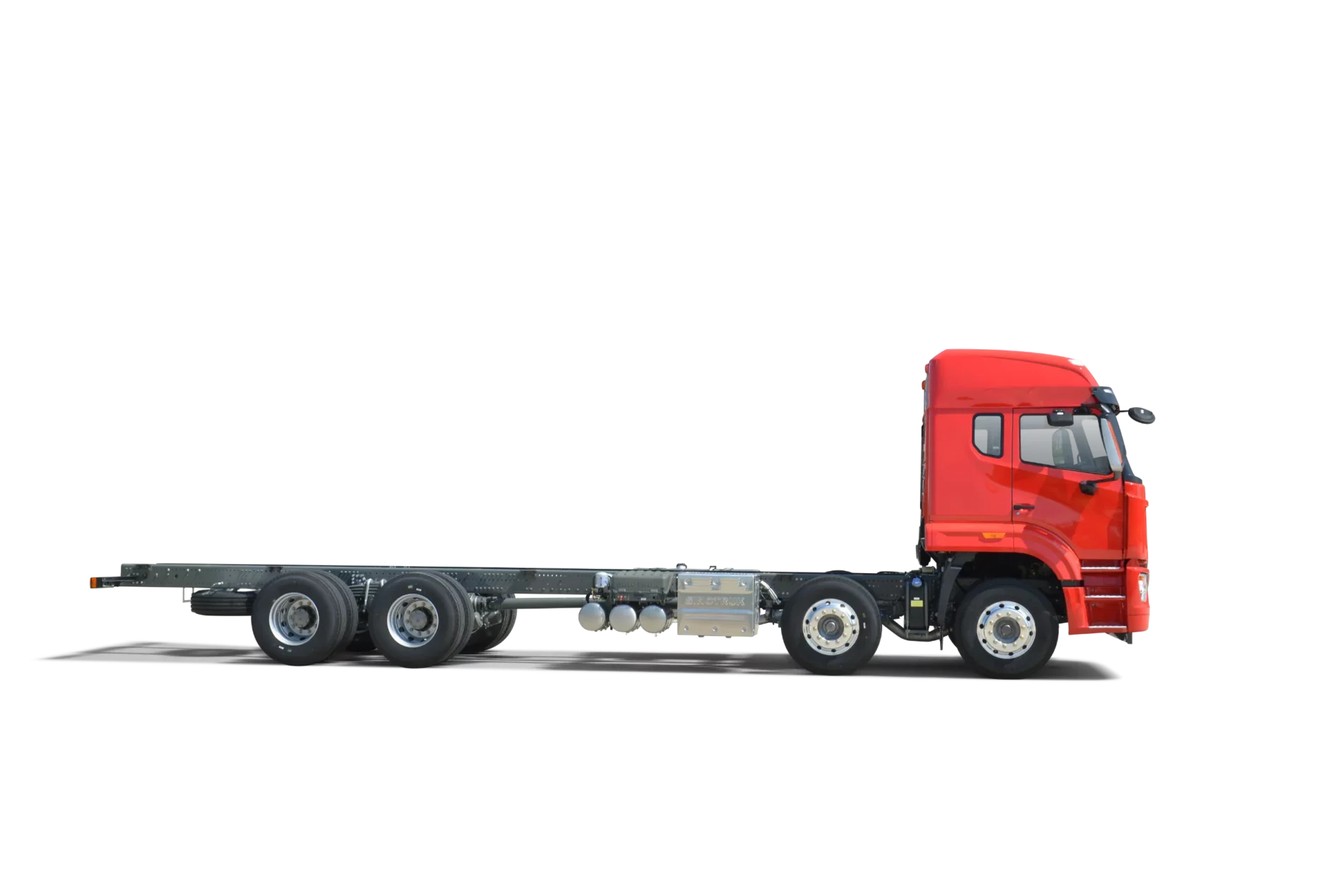

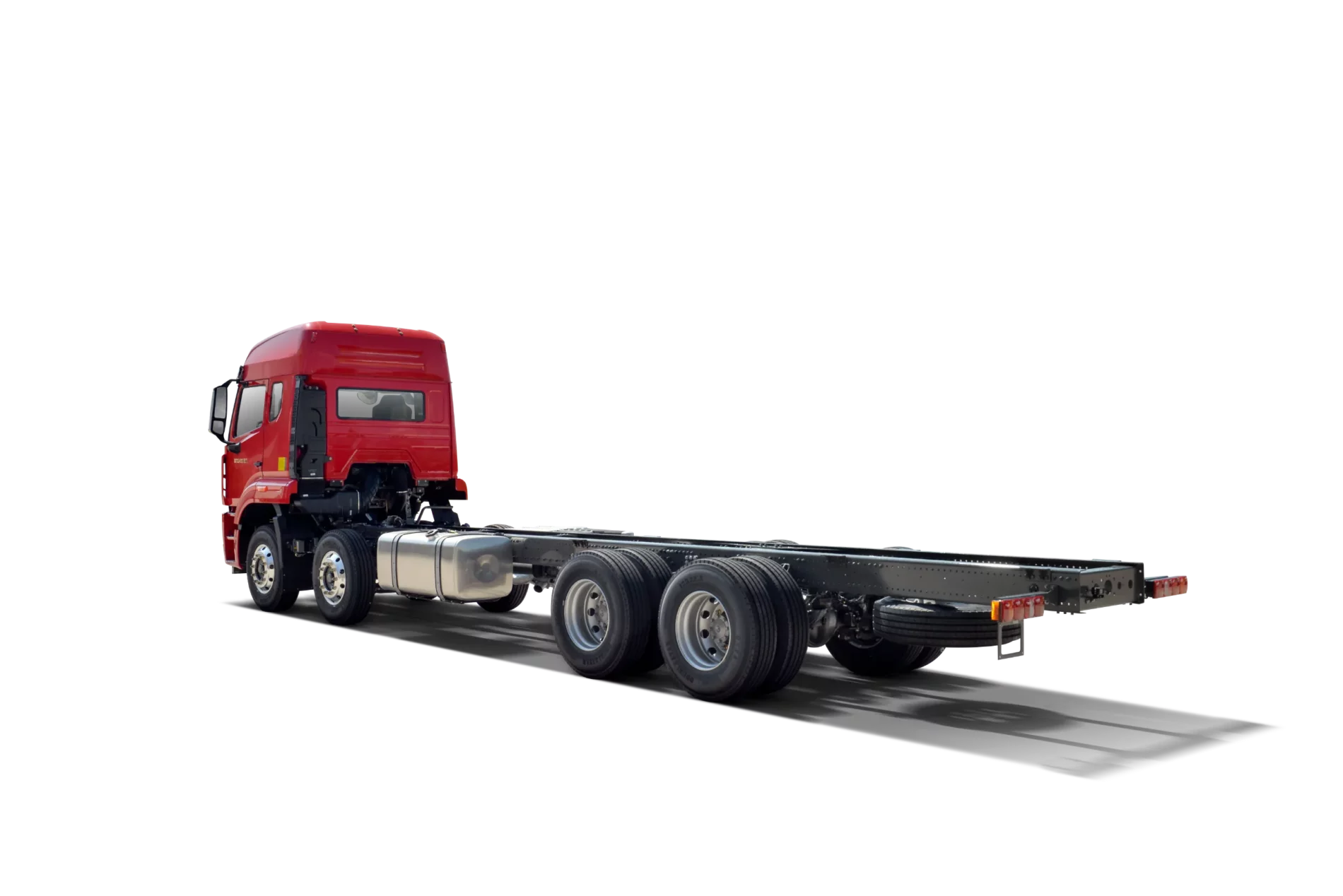

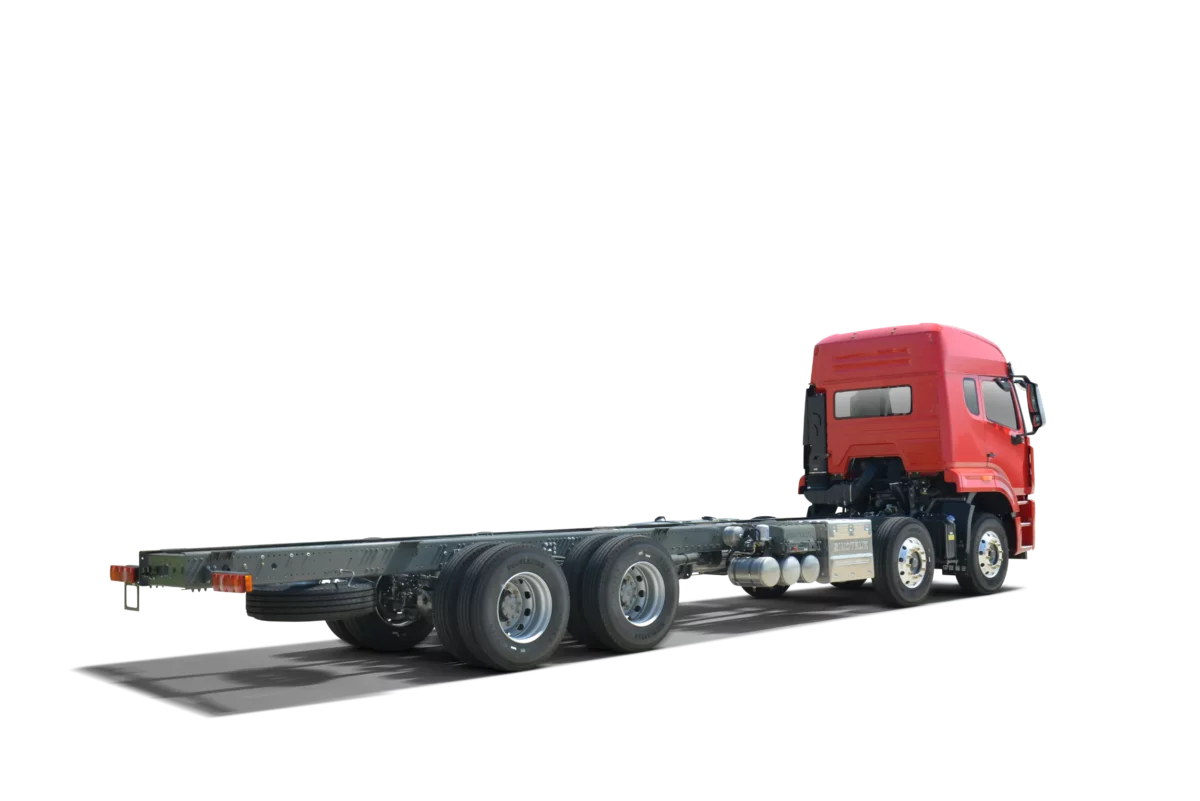

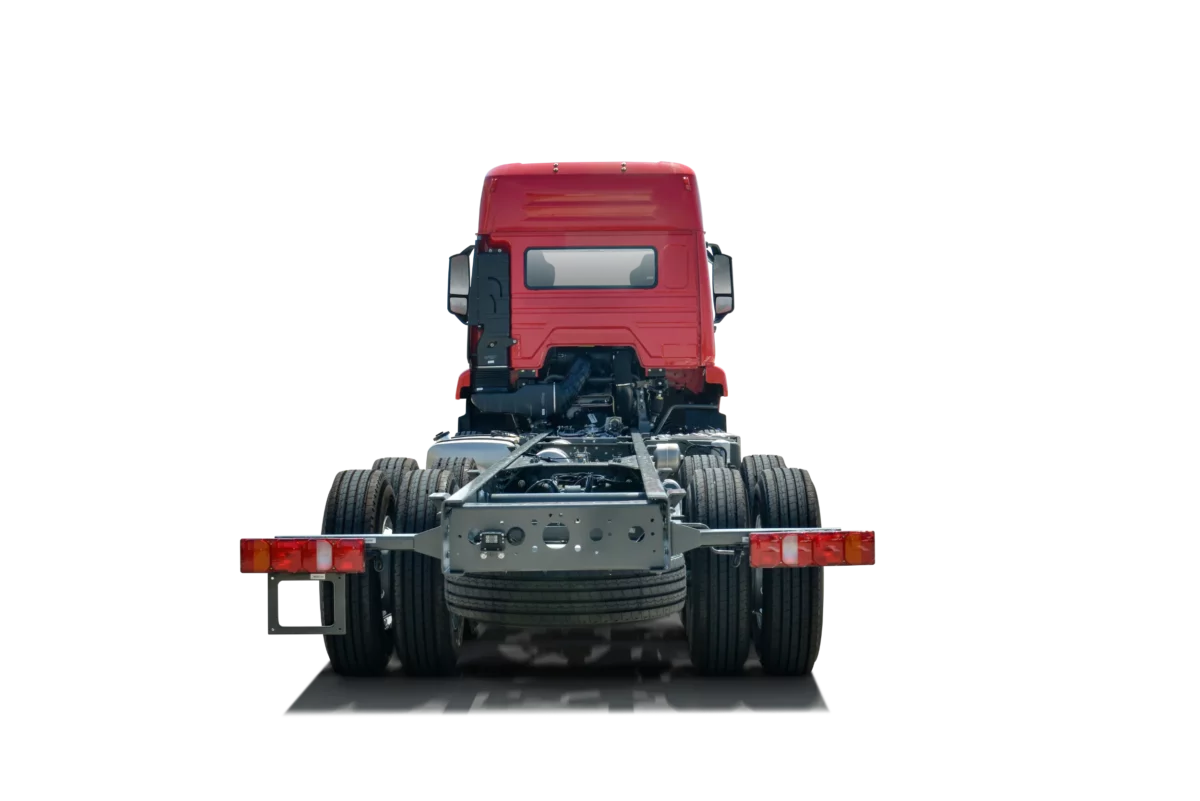

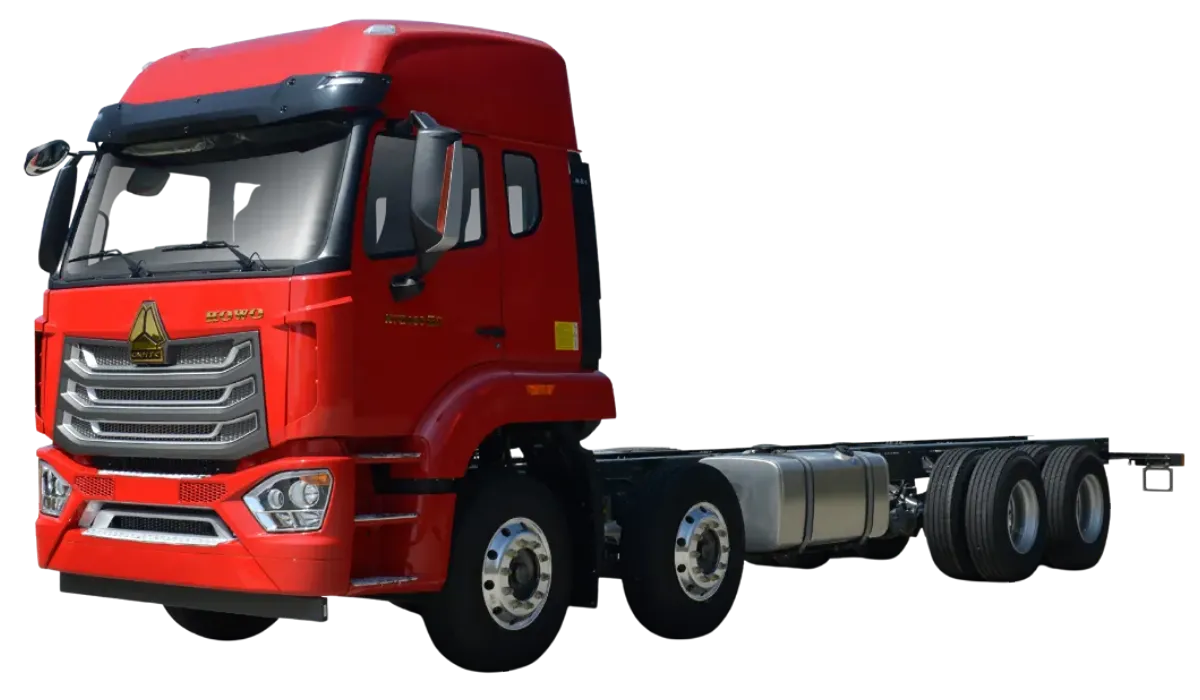

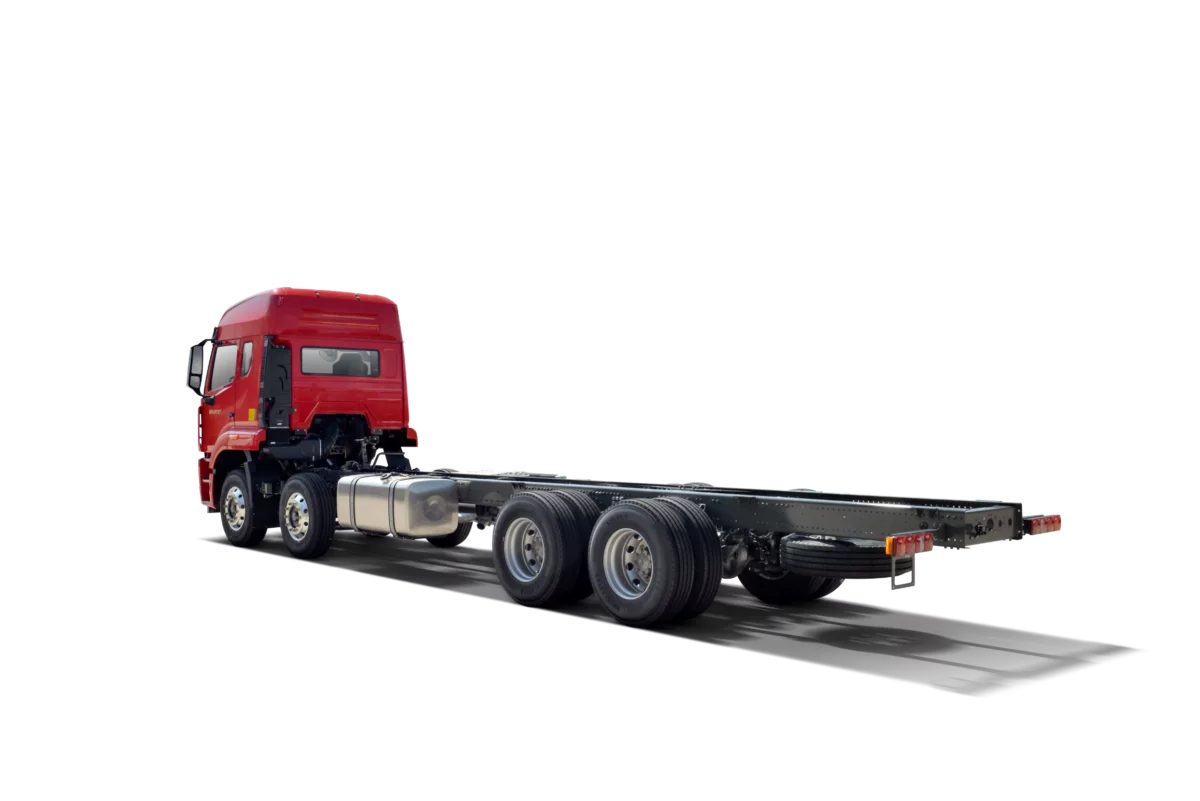

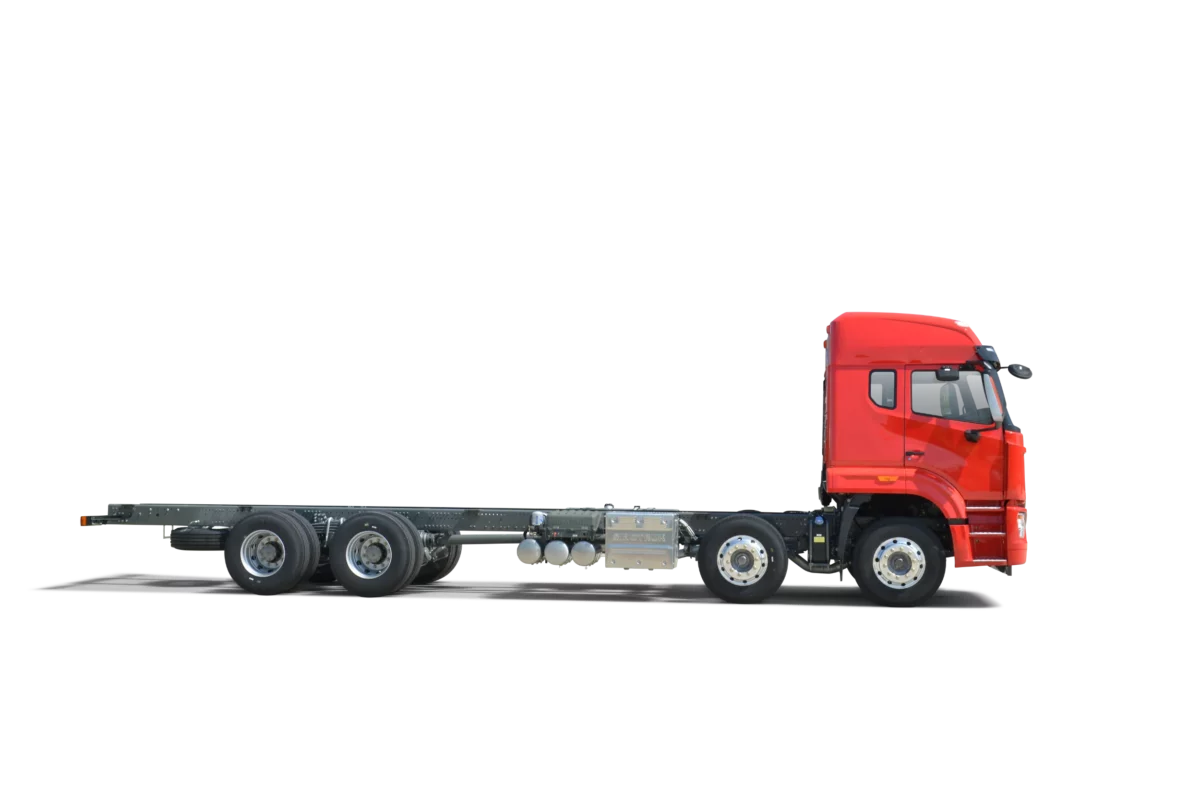

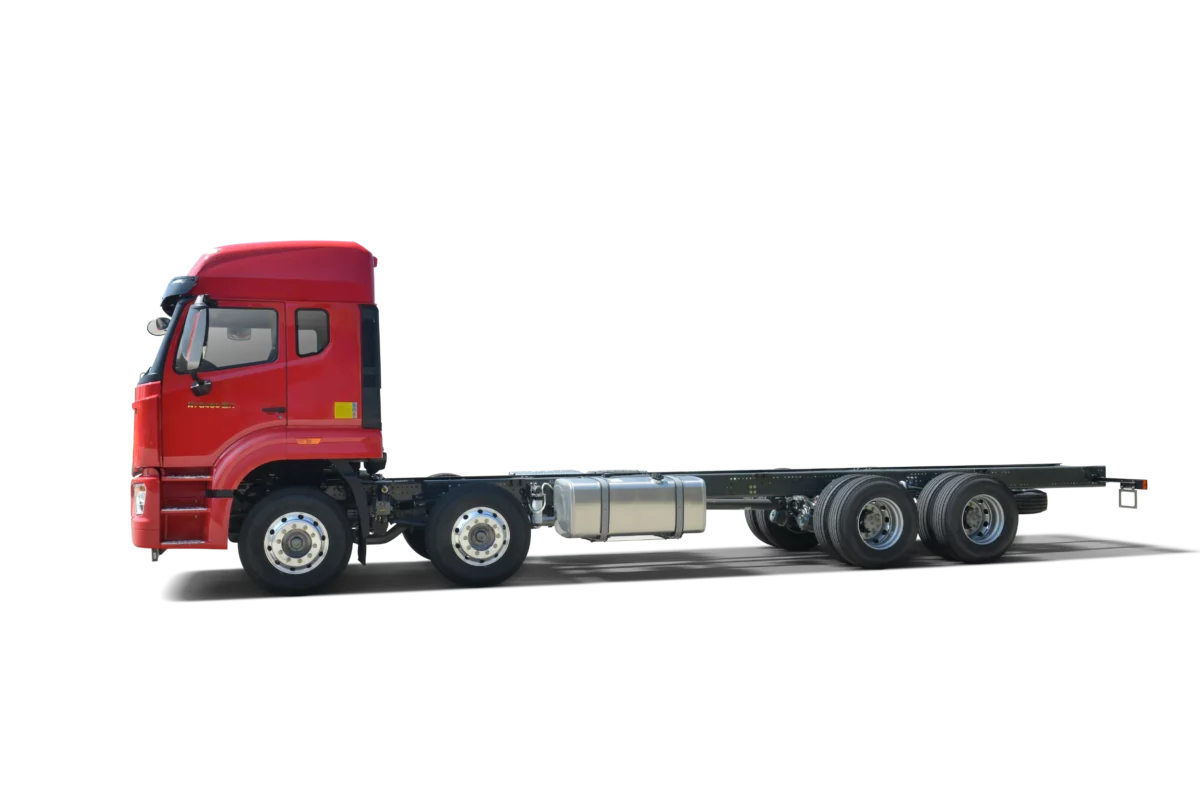

HOWO NX 8X4 Heavy Trucks
Dominate the toughest terrains with the HOWO NX 8X4, a powerhouse designed by Sinotruk to deliver uncompromising performance and reliability. Built with precision German axle technology and a massive 50,000 kg chassis loading capacity, this truck is the ultimate partner for heavy-scale construction, mining, and hauling operations.
Key Performance Highlights
- Unmatched Power: Driven by the WP12.430 engine, delivering a robust 430hp and 1900Nm of torque.
- Superior Durability: Features a reinforced double-layer frame and heavy-duty semi-elliptic leaf spring suspension.
- Precision Control: The HW19712 transmission offers 12 forward speeds for smooth shifting and optimal fuel efficiency
- All-Day Comfort: The H78L High Roof Cab isn’t just a workspace—it’s a mobile home.
Description
| Engine | Engine model: WP12.430 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 430hp(316Kw) at 1900 rpm Maximum torque: 1900Nm at 1000-1400rpm Displacement: 11.596L |
| Transmission | Model: HW19712, 12 forward and 2 reverse, with PTO |
| Front Axle | Model: VGD95, drum type brake, 9.5T, German technology |
| Rear Axle |
Model: MCX16, drum type brake, 16T×2, Double reduction with differential locks between wheels and axles, German technology
|
| Chassis | Frame: Double layer with section of 300*80*(8+8)mm suspension:semi-elliptic leaf springs Fuel tank: with 400L fuel tank |
| Steering | D50，Hydraulic steering with power assistance，left hand drive |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS |
| Wheel & Tire | Tire: 12.00R20 |
| Driver’s cab |
H78L high roof cab, with two sleepers and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, with AC
|
Wheelbase: 1800+3800+1350 mm
Front wheel track: 2030 mm
Rear wheel track: 1857 mm
Front overhang: 1550 mm
Rear overhang: 1000 mm
Approach angle(°): 28 mm
Departure angle(°): 47 mm
Body Size: 7600*2300*1500mm;
Permissible loading capacity on chassis: 50000 kg
Curb weight: 20000 kg
Gross vehicle weight: 70000 kg
Front axle loading capacity: 9500 kg
Rear axle loading capacity: 16000 x 2 kg
