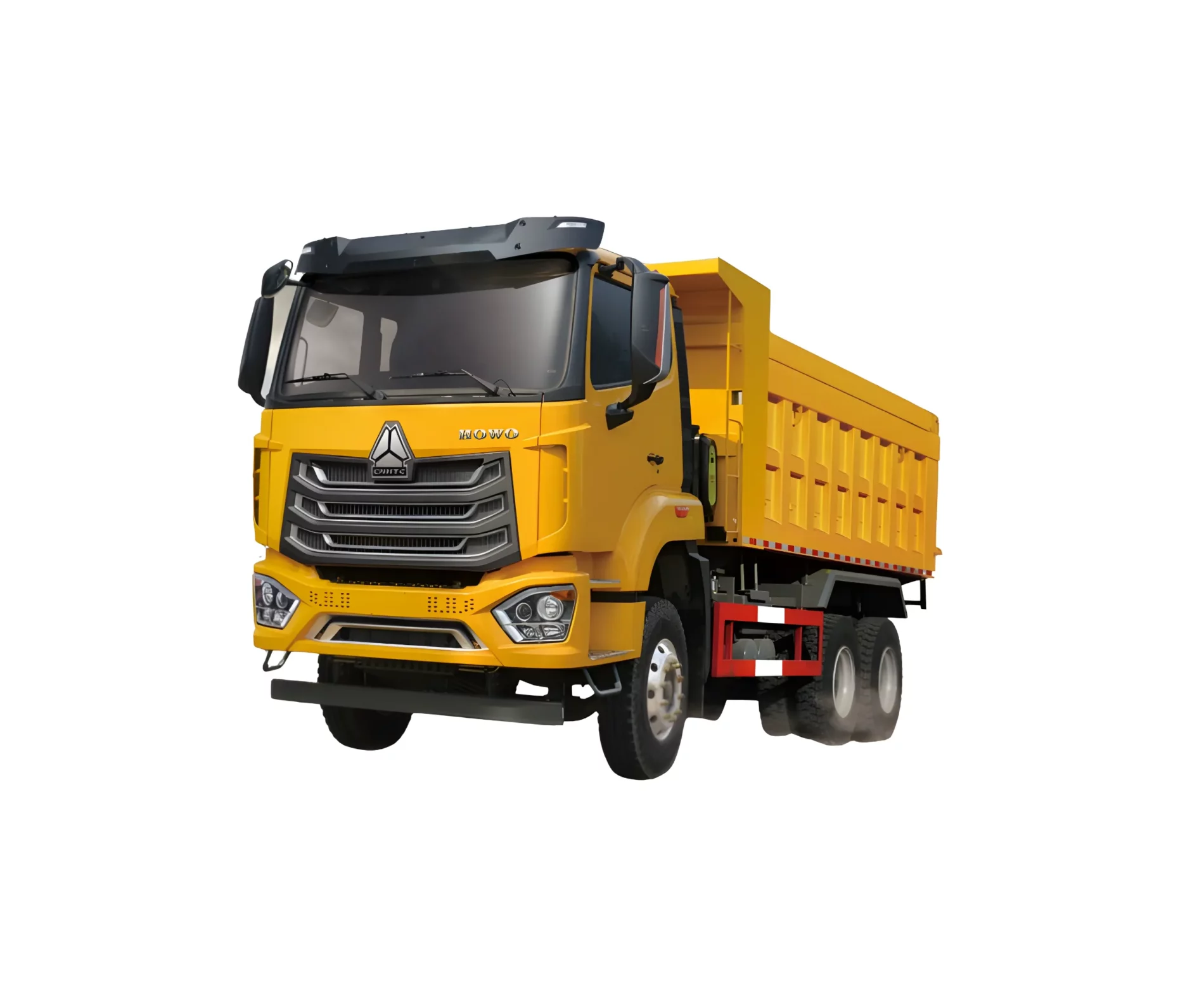

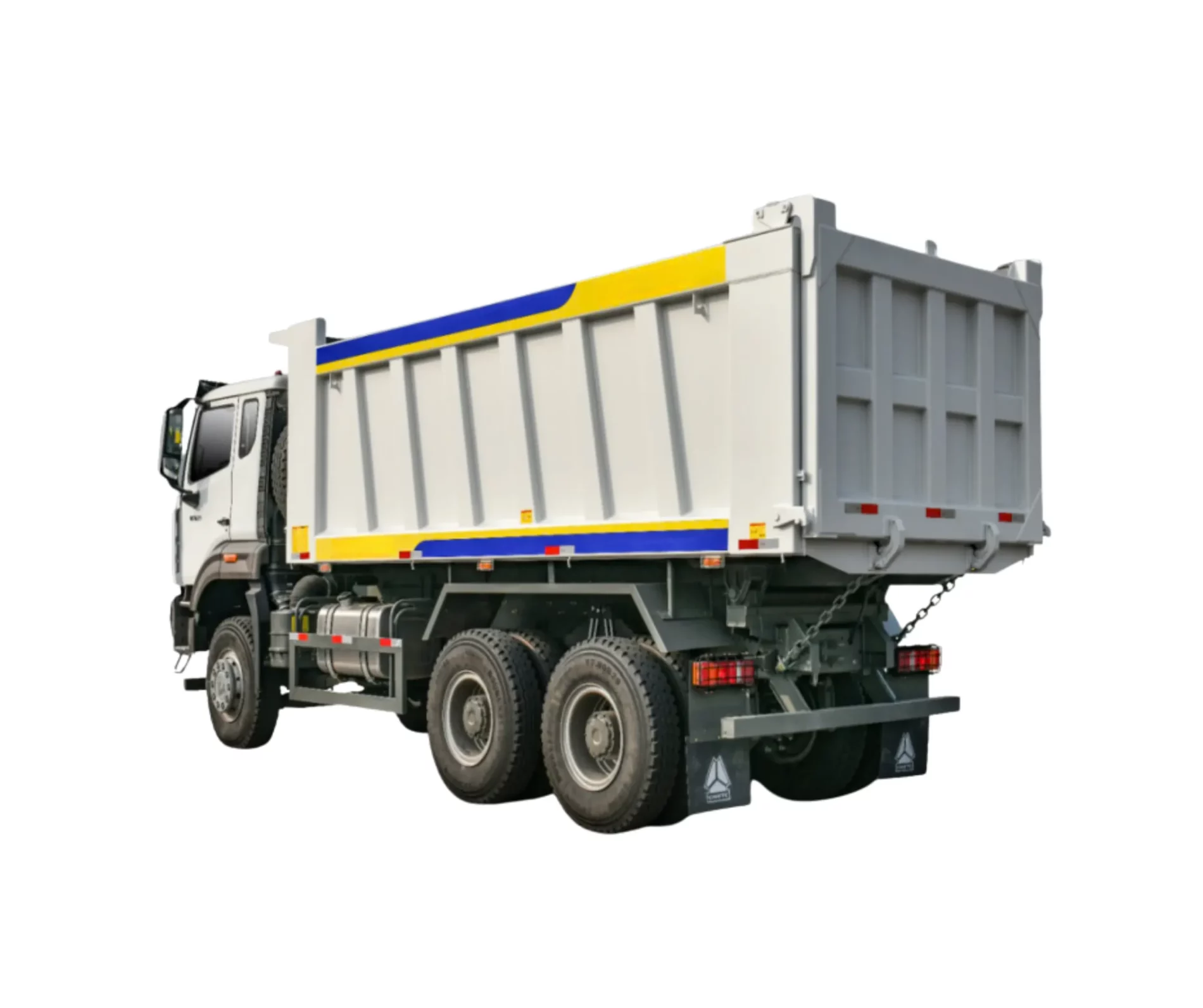

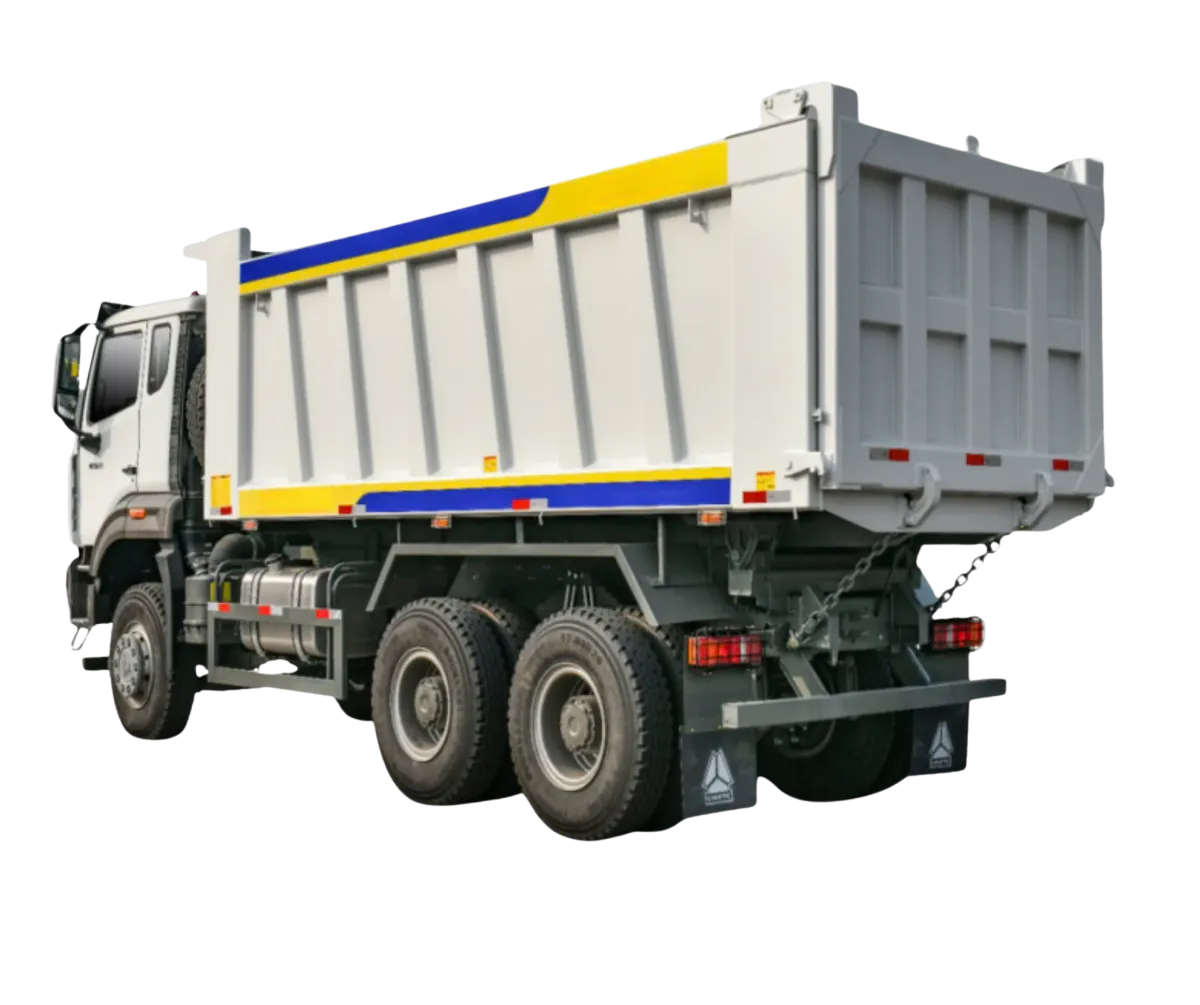

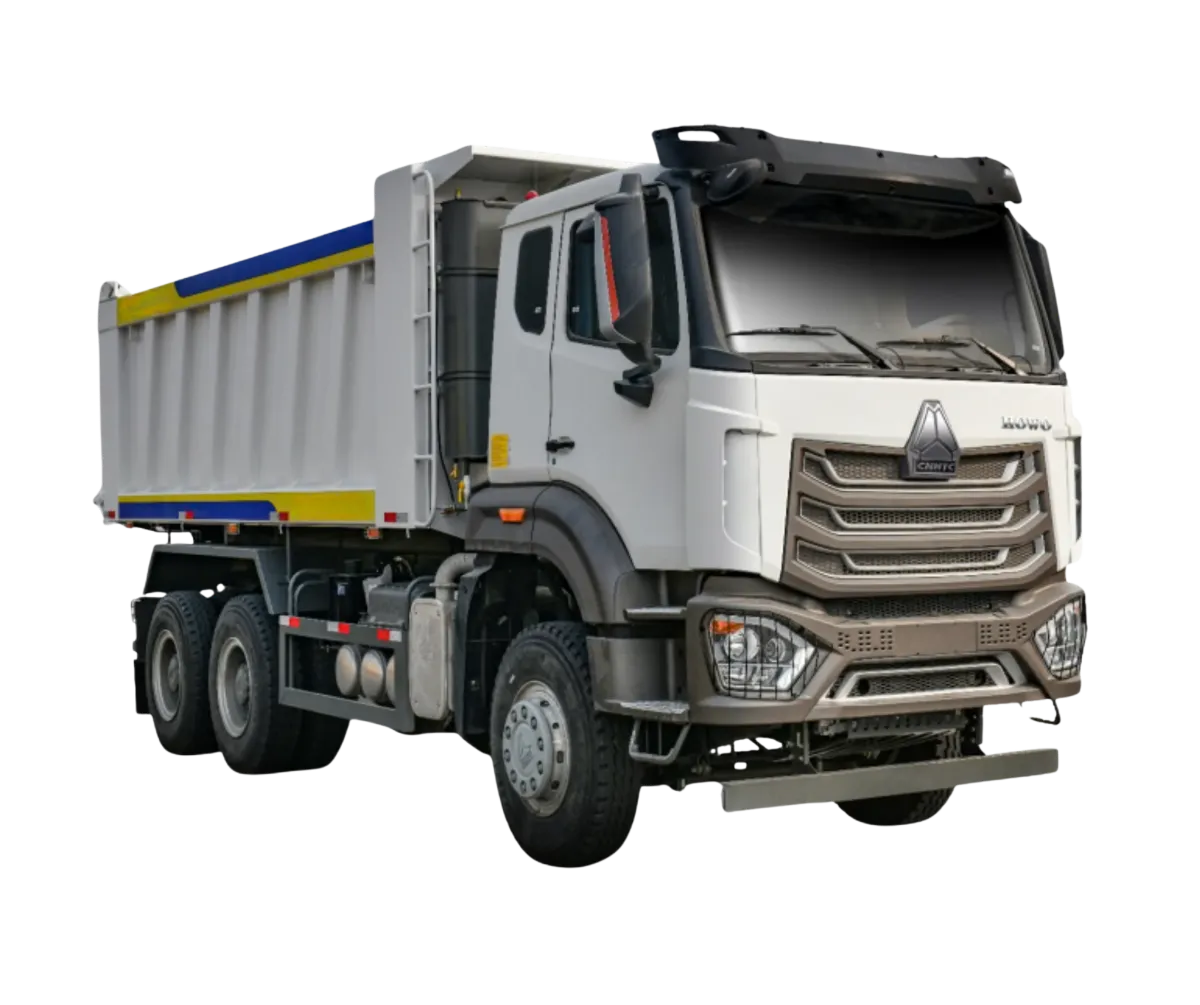

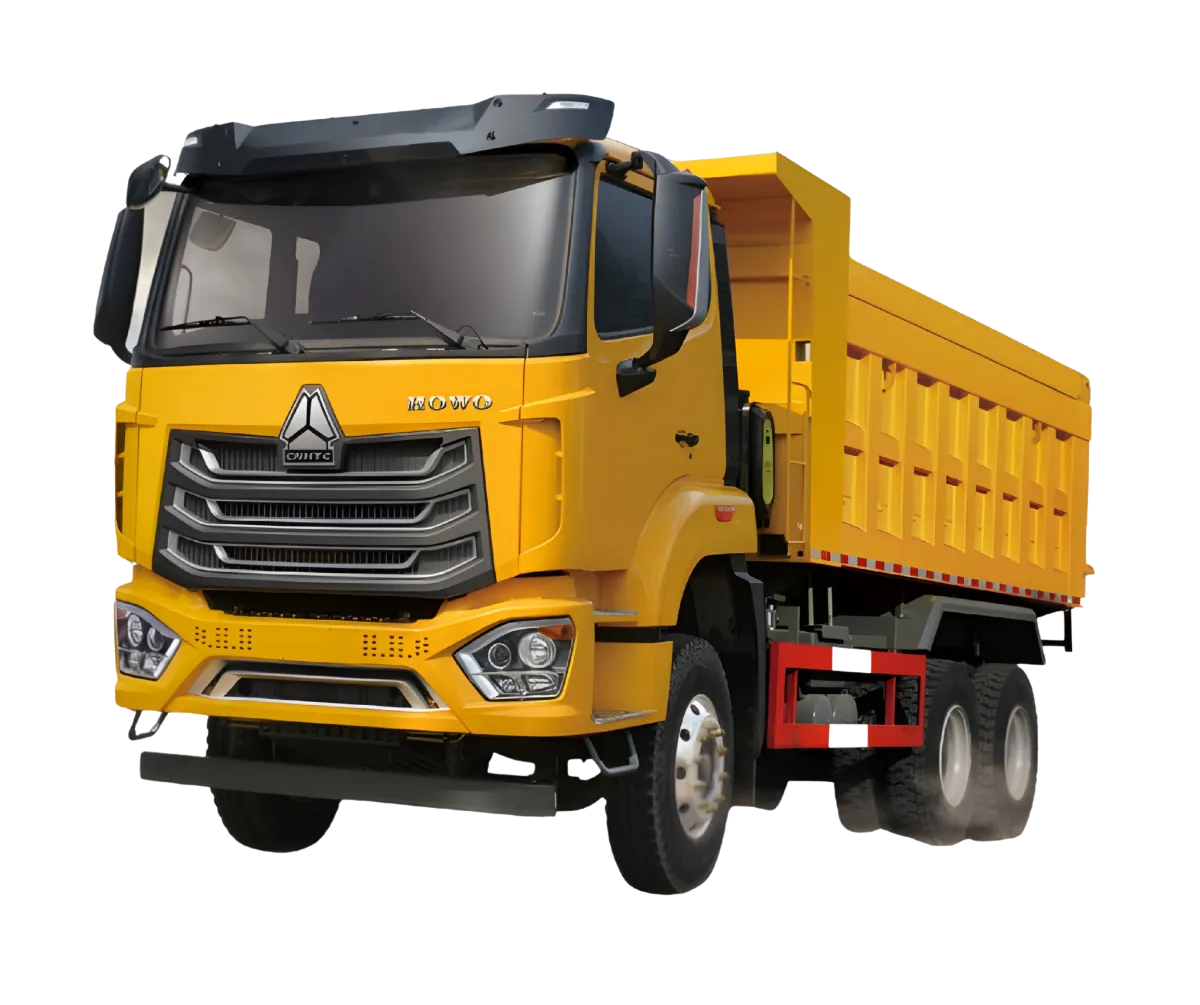

HOWO NX 6X4 Heavy Trucks 6×4
onquer challenging roads and heavy-duty transport tasks with the HOWO NX 6X4 Heavy Truck 6×4. Built by Sinotruk for unmatched strength, reliability, and efficiency, this truck is engineered to perform under the toughest conditions—perfect for construction, mining, and long-haul freight operations.
Key Performance Highlights
- Robust Engine Performance: Powered by a high-efficiency diesel engine that delivers exceptional horsepower
- Durable & Resilient Build: The reinforced multi-layer frame and heavy-duty suspension system, combined with VGD95 front axle and MCX16 double-reduction rear axles,
- Smooth & Precise Handling: The 12-speed HW19712 transmission paired with hydraulic power steering provides seamless gear shifts, and optimized fuel efficiency,
- Driver-Focused Comfort: The H78L High Roof Cab features two sleepers, full air-conditioning, and an adjustable steering system
- Heavy-Duty Versatility: Designed for high payloads and operational reliability, the NX 6X4 6×4 is ideal for large-scale construction, industrial transport, and long-distance freight
Description
| Engine | Engine model: WD615.47/D10.38-50/WP10.380 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 371-380hpat 2200 rpm Maximum torque: 1500-1600Nm at 1100-1600rpm Displacement: 9.726L |
| Transmission | Model: HW19710, 10 forward and 2 reverse, with PTO |
| Front Axle | Model: VGD95, drum type brake, 9.5T, German technology |
| Rear Axle | Model: MCX16, drum type brake, 16T×2, Double reduction with differential locks between wheels and axles, German technology |
| Chassis | Frame: Double layer with section of 300*80*(8+8)mm suspension: semi-elliptic leaf springs Fuel tank: 300L fuel tank |
| Steering | D50，Hydraulic steering with power assistance，left hand drive |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS |
| Wheel & Tire | Tire: 12.00R20 |
| Driver’s cab | H77L Long cab, with one sleeper and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, electric window lifter,, with AC |
Wheelbase: 3800+1350 mm
Front wheel track: 2030 mm
Rear wheel track: 1510 mm
Front overhang: 900 mm
Rear overhang: 28 mm
Approach angle(°): 53 mm
Departure angle(°): 5600*2300*1500mm
Bottom: 8 side 6mm; middle lifting
Permissible loading capacity on chassis: 35500kg
Curb weight: 14500 kg
Gross vehicle weight: 50000 kg
Front axle loading capacity:9500 kg
Rear axle loading capacity: 16000 x 2 kg
