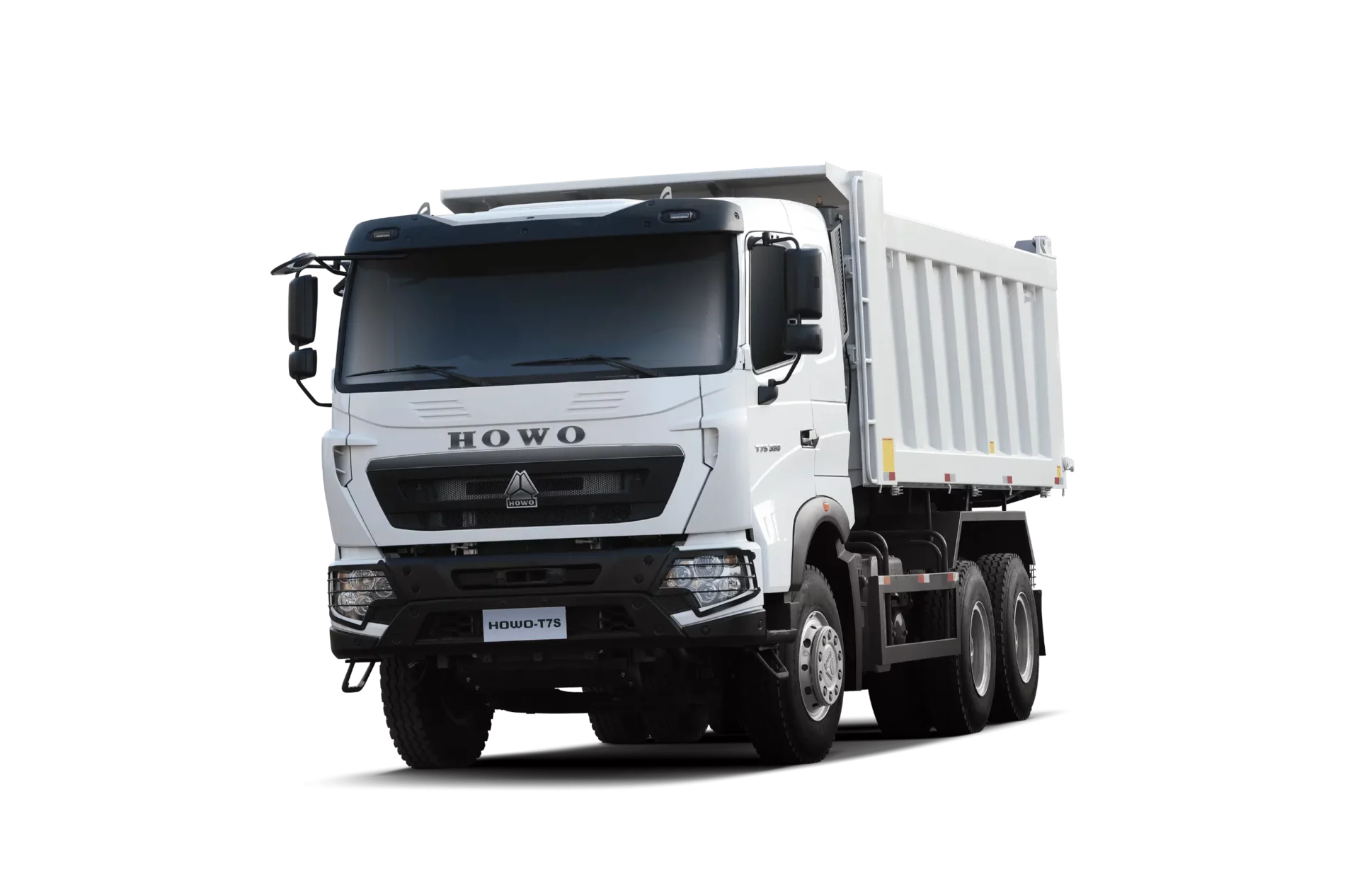

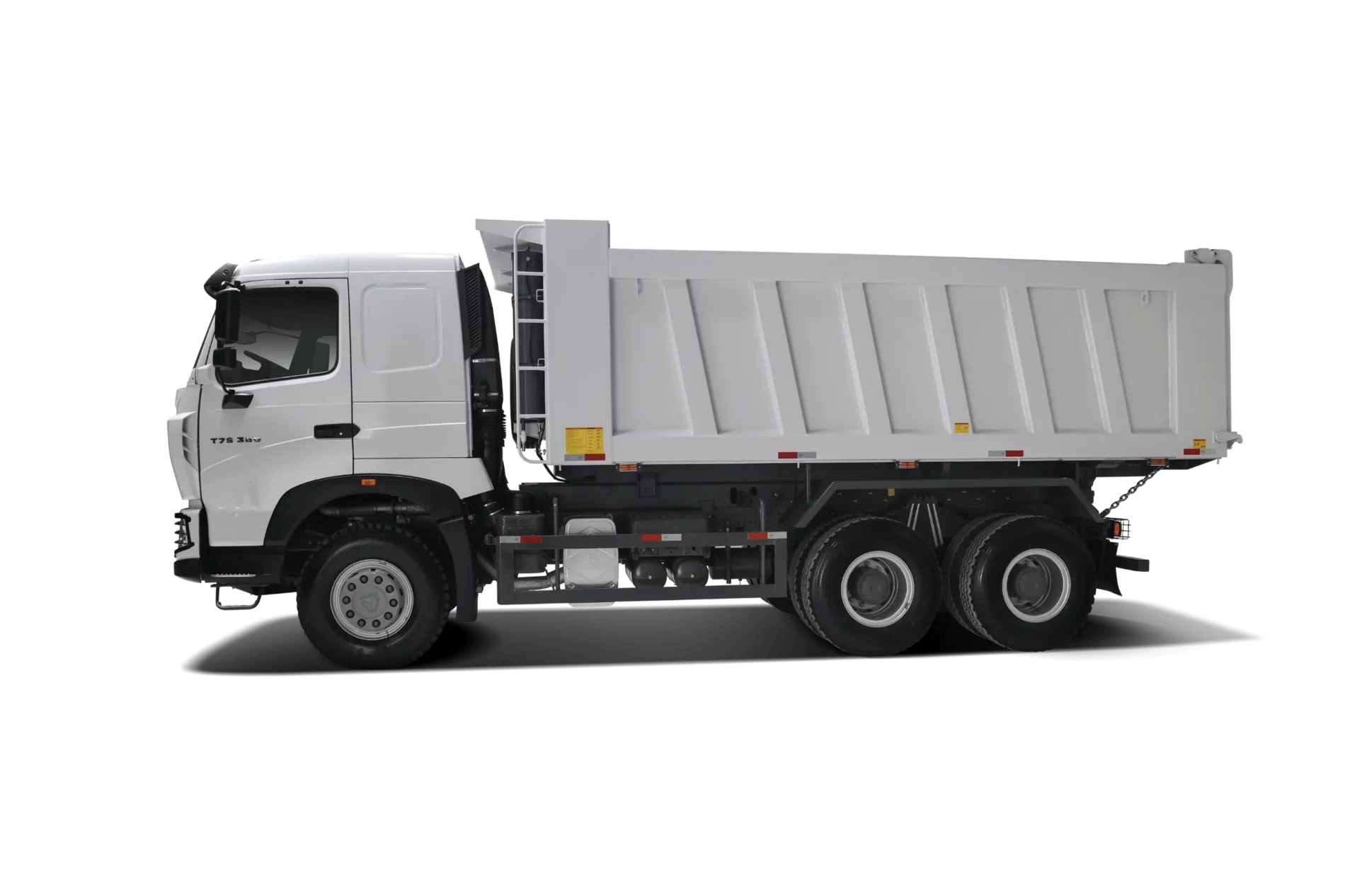

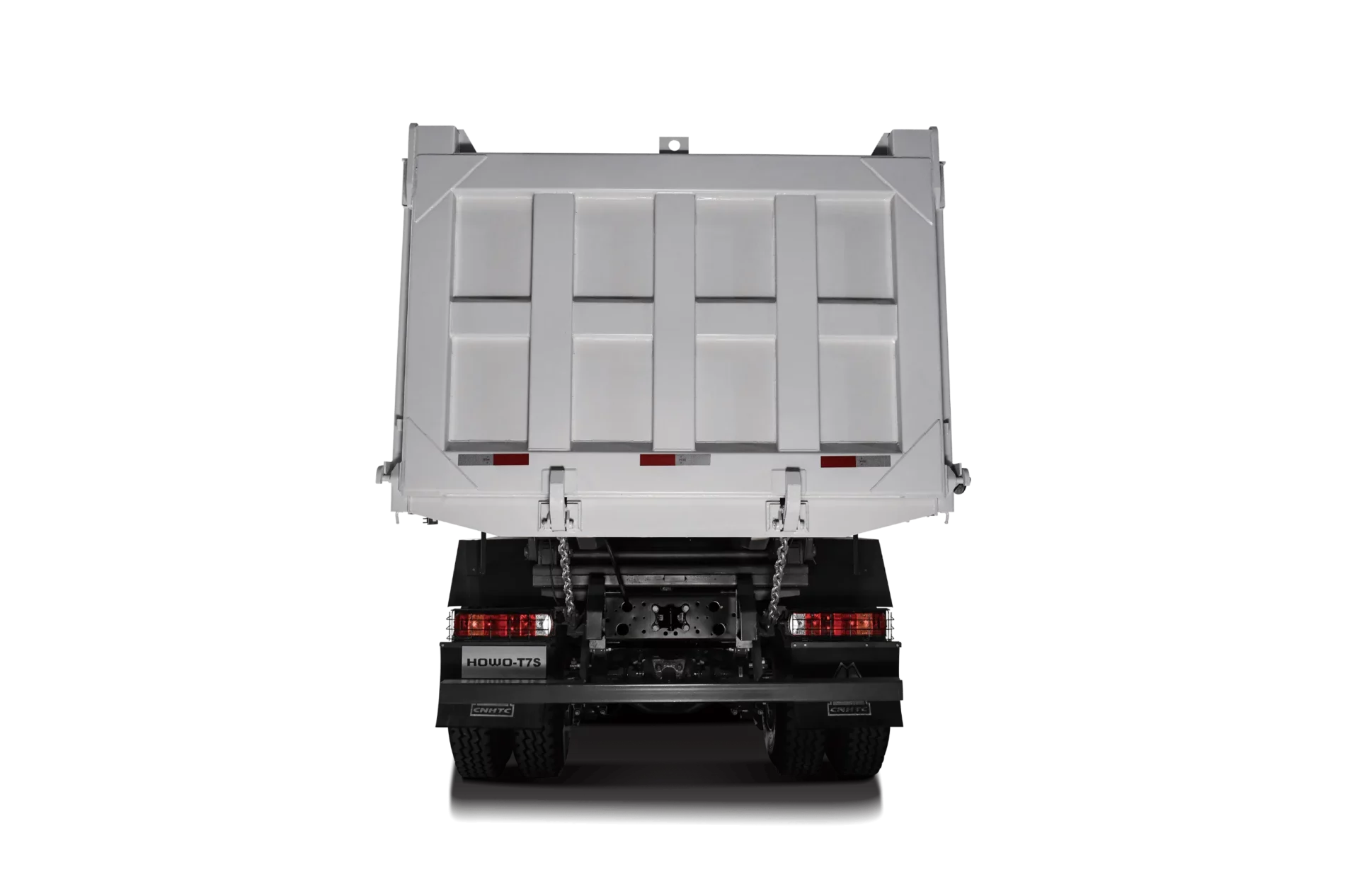

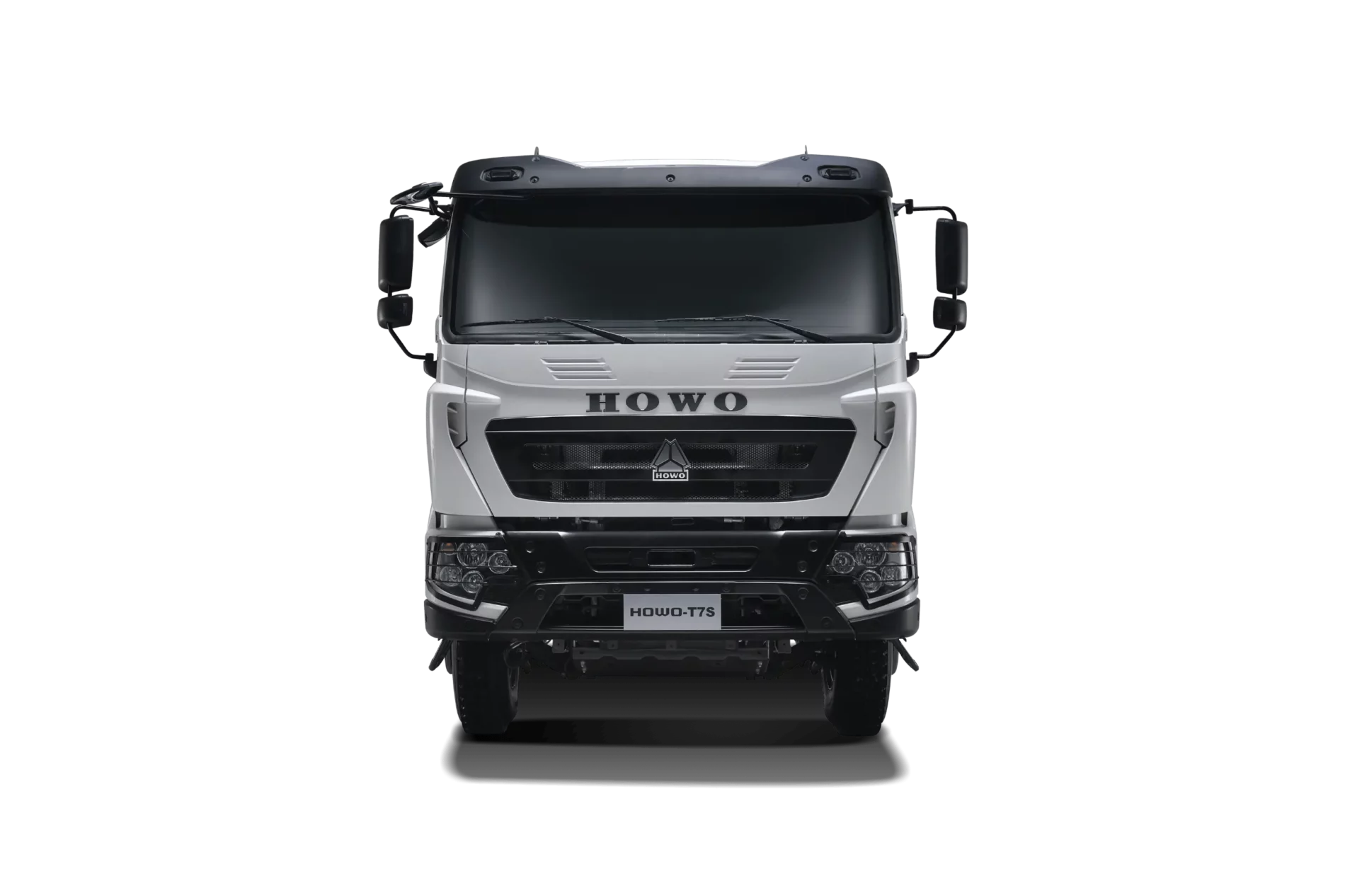

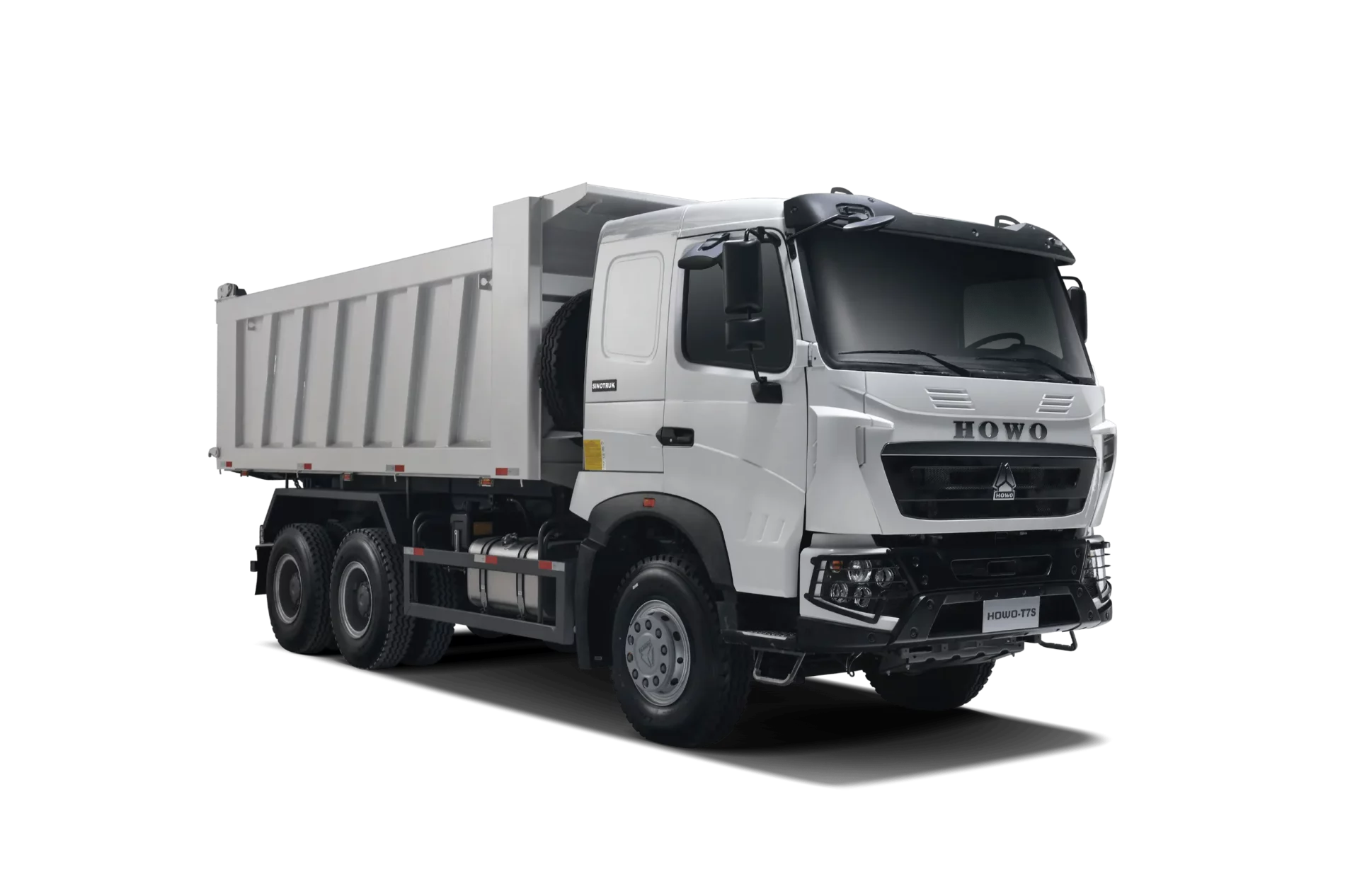

HOWO T7S 6X4 Heavy Trucks 6×4
Experience the perfect balance of agility and power with the HOWO T7S 6X4 Heavy Truck. Designed by Sinotruk to bridge the gap between maneuverability and heavy-duty performance, the 6X4 configuration is the industry standard for versatile logistics, medium-scale mining, and construction site support.
Key Performance Highlights
- Optimized Power-to-Weight Ratio: Powered by high-performance Weichai or MC11 series engines
- Enhanced Maneuverability: Featuring a shorter wheelbase and a 10-wheel configuration, the 6X4 offers a tighter turning radius
- Reliable Drivetrain: Equipped with the proven HW19710 10-speed transmission and MAN technology axles, ensuring smooth gear transitions
- Driver-Centric Cab: The T7S Sleeper Cab provides a premium workspace with an ergonomic dashboard
- Versatile Utility: A true “all-rounder” capable of serving as a tipper truck for 20m³ loads
Description
| Engine | Engine model: WD615.47/D10.38-50/WP10.380 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 371-380hpat 2200 rpm Maximum torque: 1500-1600Nm at 1100-1600rpm Displacement: 9.726L |
| Transmission | Model: HW19710, 10 forward and 2 reverse, with PTO |
| Front Axle | Model: VGD95, drum type brake, 9.5T, German technology |
| Rear Axle | Model: MCX16, drum type brake, 16T×2, Double reduction with differential locks between wheels and axles, German technology |
| Chassis | Frame: Double layer with section of 300*80*(8+8)mm suspension: semi-elliptic leaf springs Fuel tank: 300L fuel tank |
| Steering | BOSCH, Hydraulic steering with power assistance |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS |
| Wheel & Tire | Tire: 12.00R20 |
| Driver’s cab | T7S-W Long cab, with one sleeper and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, , with AC |
3800+1350 mm
Wheelbase: 2030 mm
Front wheel track: 1866 mm
Rear wheel track: 1550 mm
Front overhang: 900 mm
Rear overhang: 900 mm
Approach angle(°): 53 mm
Departure angle(°): 5600*23001500mm;
Body Size: Bottom 8 side 6mm; middle lifting
Permissible loading capacity on chassis: 35500kg
Curb weight: 14500 kg
Gross vehicle weight: 50000 kg
Front axle loading capacity: 9500 kg
Rear axle loading capacity: 16000 x 2 kg
