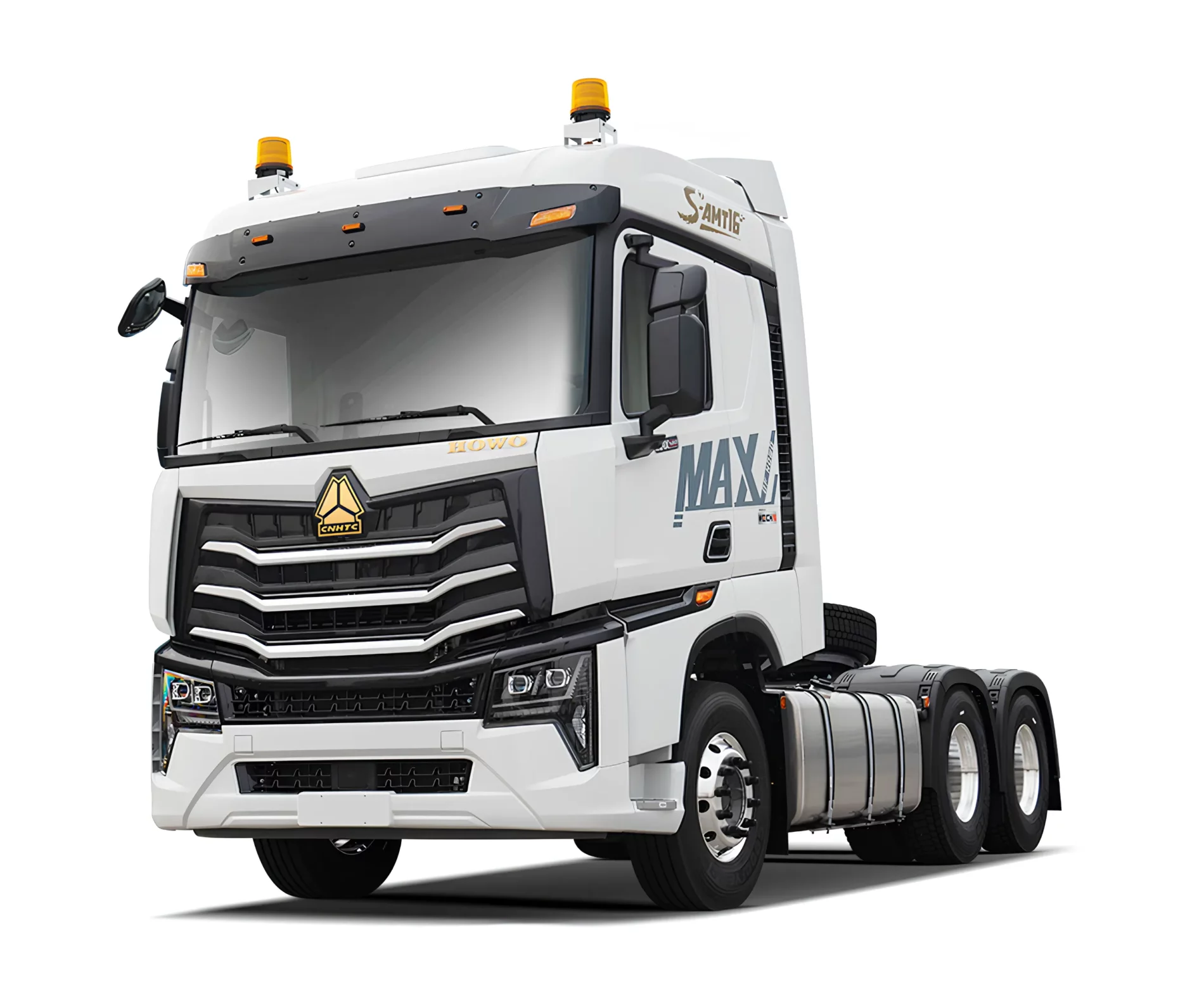

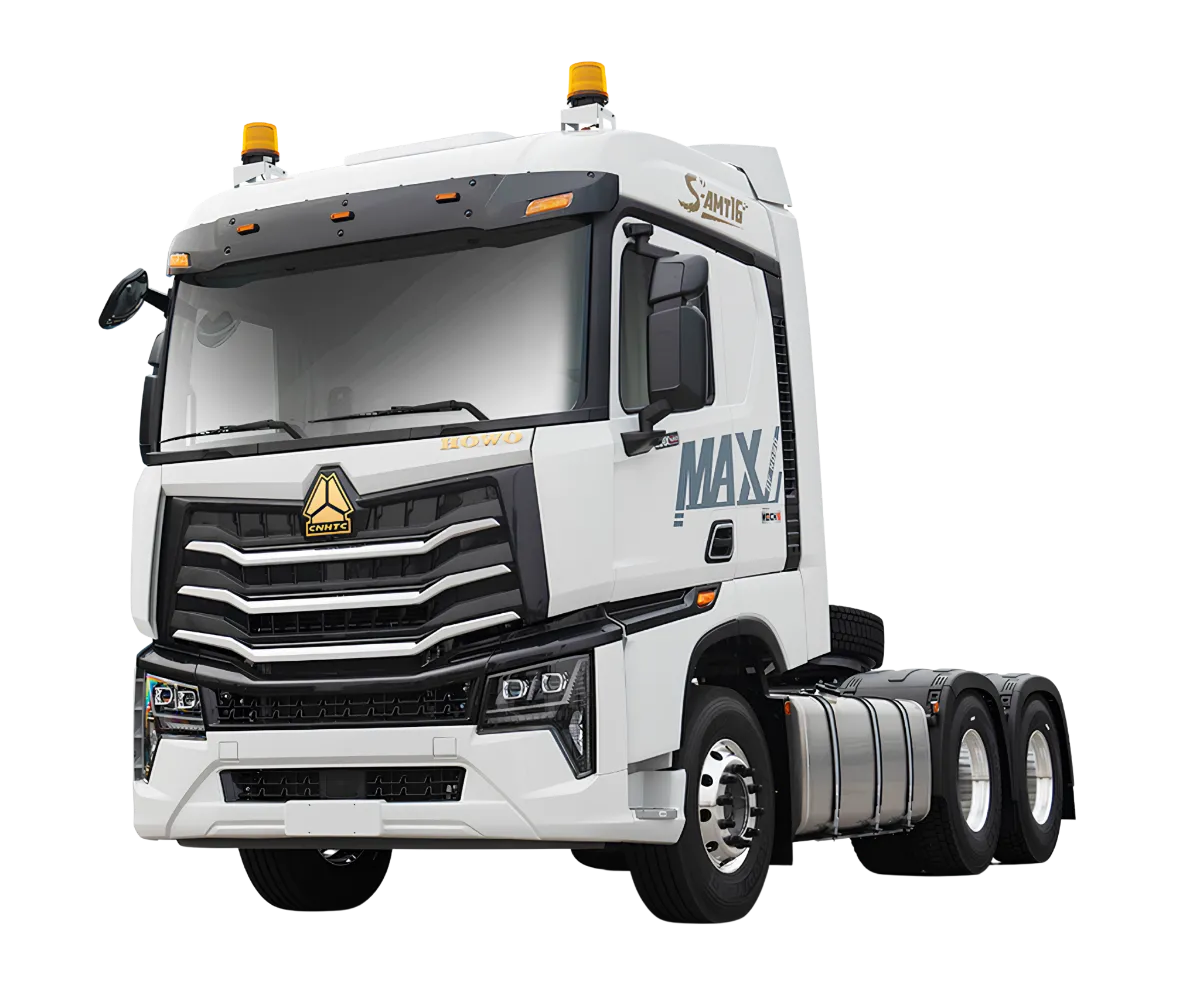

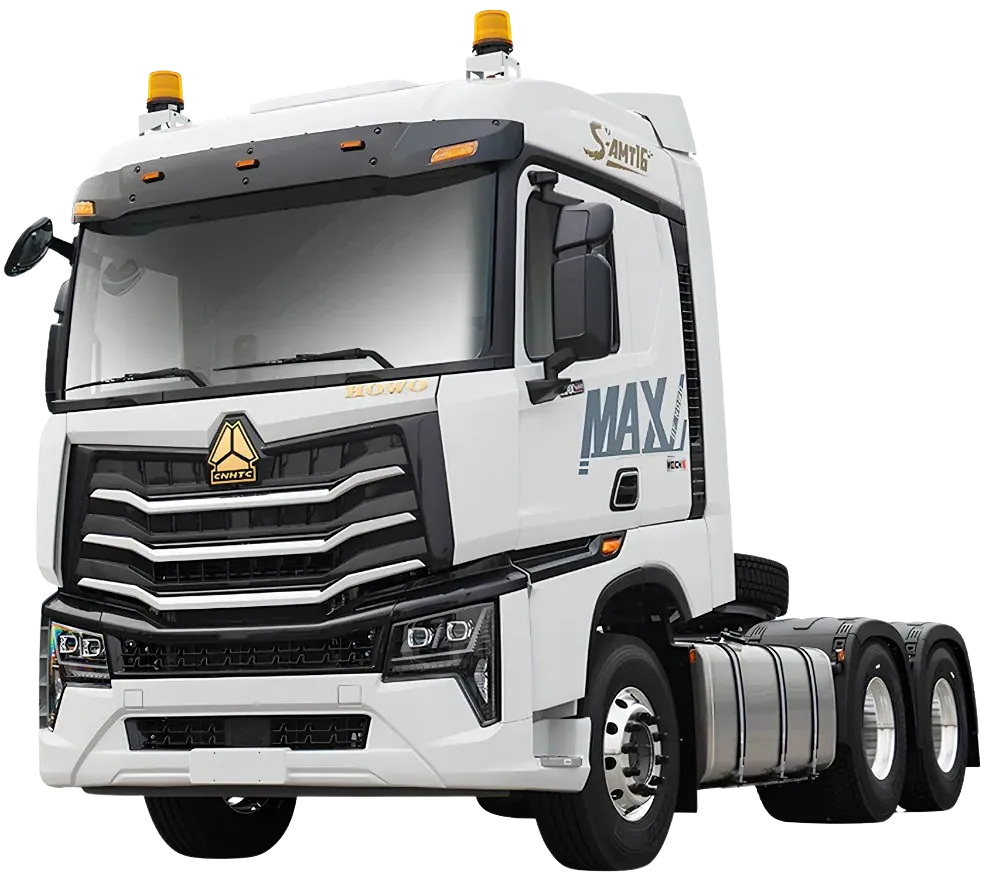

HOWO MAX 6X4 Heavy Trucks
Engineered for ultimate performance and reliability, the HOWO MAX 6X4 Heavy Truck is built to handle the most demanding transport and construction operations. With Sinotruk’s advanced engineering, the MAX 6X4 delivers superior power, durability, and efficiency—making it the ideal choice for heavy-duty hauling, mining, and industrial applications.
Key Performance Highlights
- High-Powered Engine: Equipped with a robust diesel engine delivering exceptional horsepower and torque
- Rugged & Durable Construction: Features a reinforced multi-layer frame and heavy-duty suspension system.
- Precision Control: The 12-speed HW19712 transmission, combined with hydraulic power steering, offers smooth gear shifts
- Driver-Centric Comfort: The H78L High Roof Cab comes with two sleepers, full air-conditioning
- Heavy-Duty Versatility: Ideal for large-scale construction, mining, and industrial transport
Description
| Engine | Engine model: WP12.430 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 430hp(316Kw) at 1900 rpm Maximum torque: 1900Nm at 1000-1400rpm Displacement: 11.596L Bore*stoke: 126mm×155mm |
| Transmission | Model: HW25712XSTL, 12 forward and 2 reverse, with PTO |
| Front Axle | Model: VGD71, drum type brake, 7.1T, German technology |
| Rear Axle | Model: MCY13BGS, drum type brake, 13T×2, German technology |
| Chassis | Frame: Double layer with section of 300*80*(8+5)mm Fuel tank: 600L capacity with locking fuel cap Fifth wheel: 50# |
| Steering | D50，Hydraulic steering with power assistance，left hand drive |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake With ABS（4S/4M） |
| Wheel & Tire | Tire: 315/80R22.5 |
| Driver’s cab | MAX-E high roof cab, with two sleepers and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, electric window lifter, with AC |
Wheelbase: 3800+1400 mm
Front wheel track: 2038 mm
Rear wheel track: 1860 mm
Front overhang: 1465 mm
Rear overhang: 950 mm
Approach angle(°): 17 mm
Departure angle(°): 45 mm
Curb weight: 8000 kg
Gross vehicle weight: 50000 kg
Front axle loading capacity: 7100 kg
Rear axle loading capacity: 13000 x 2 kg
