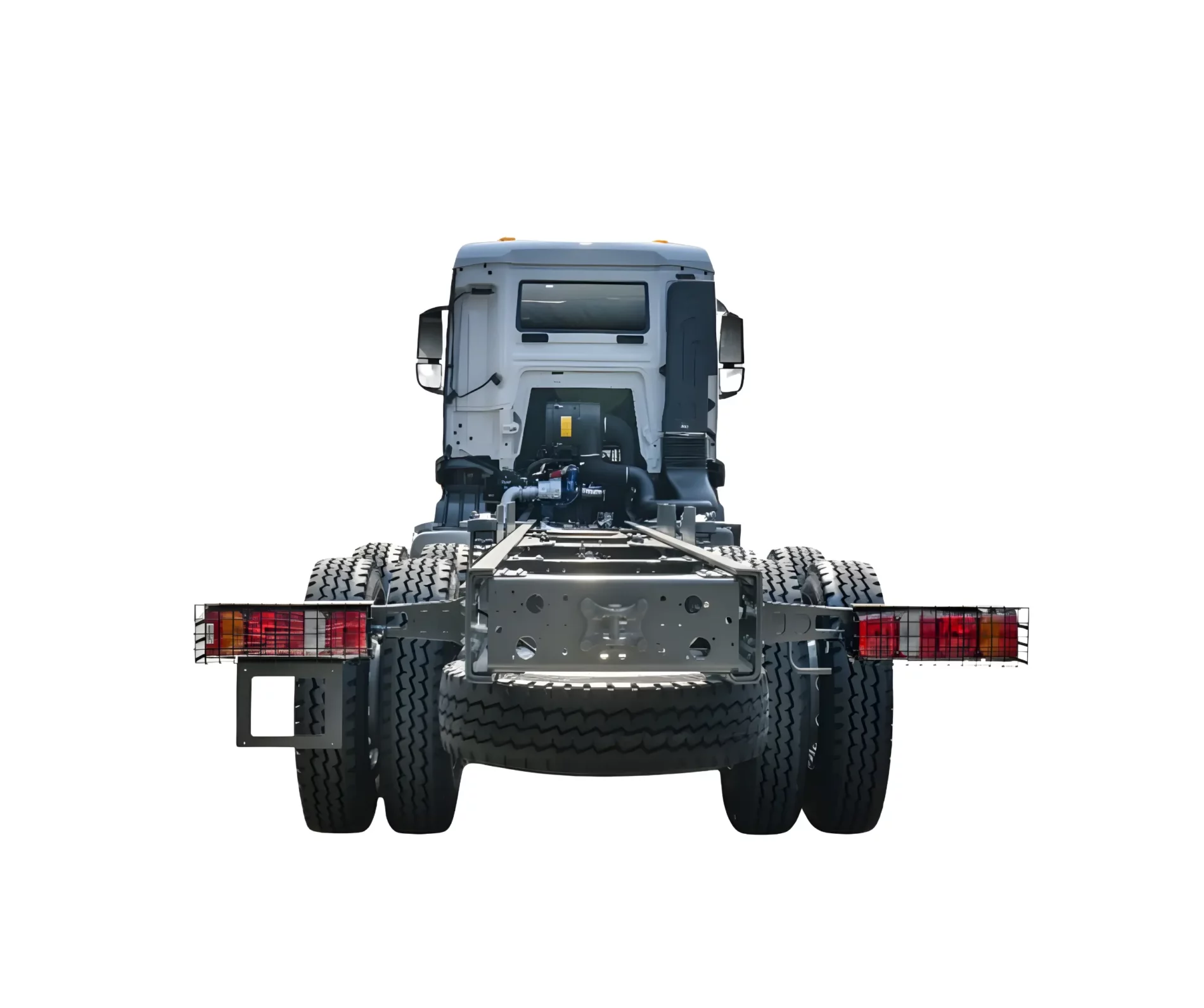

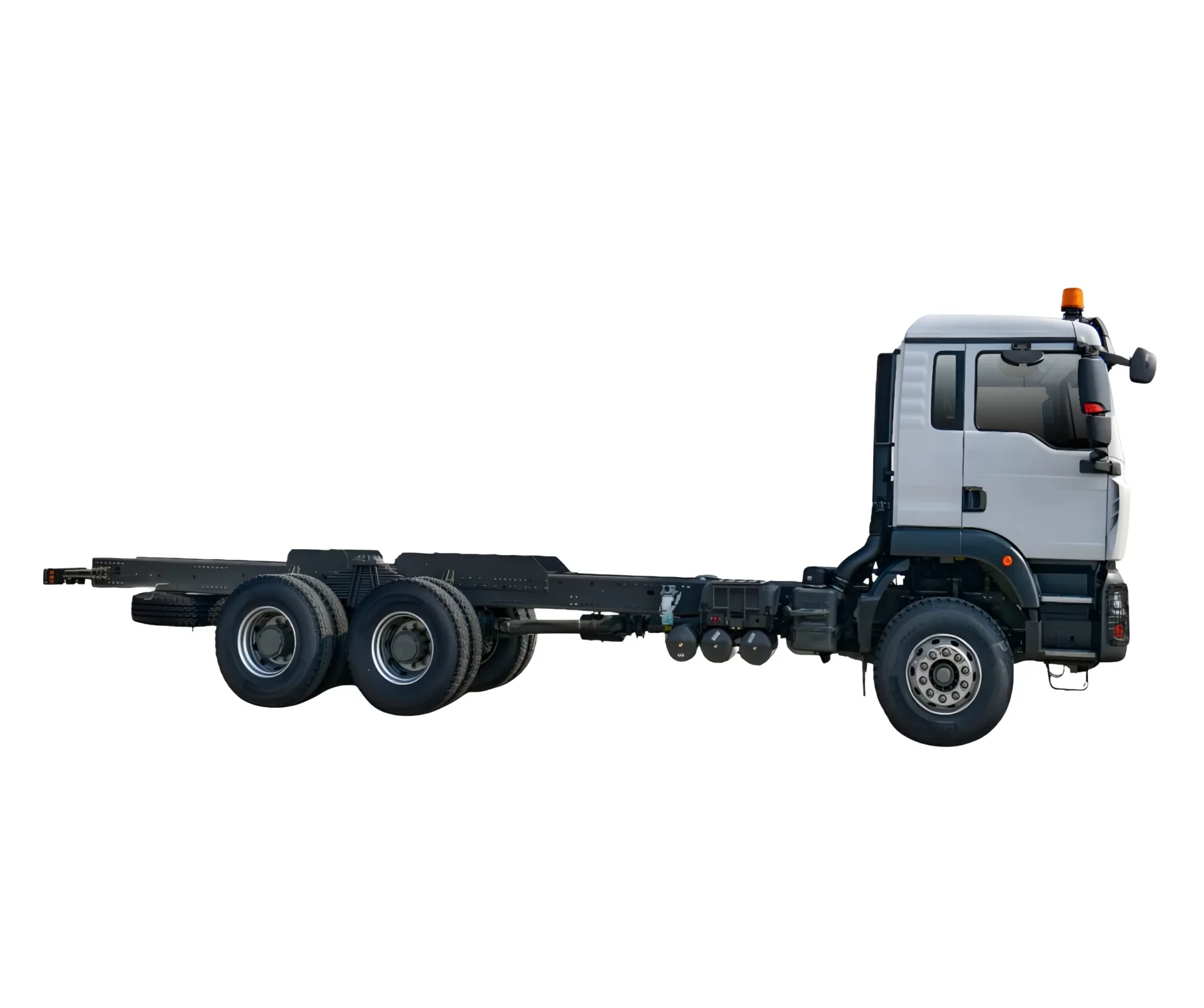

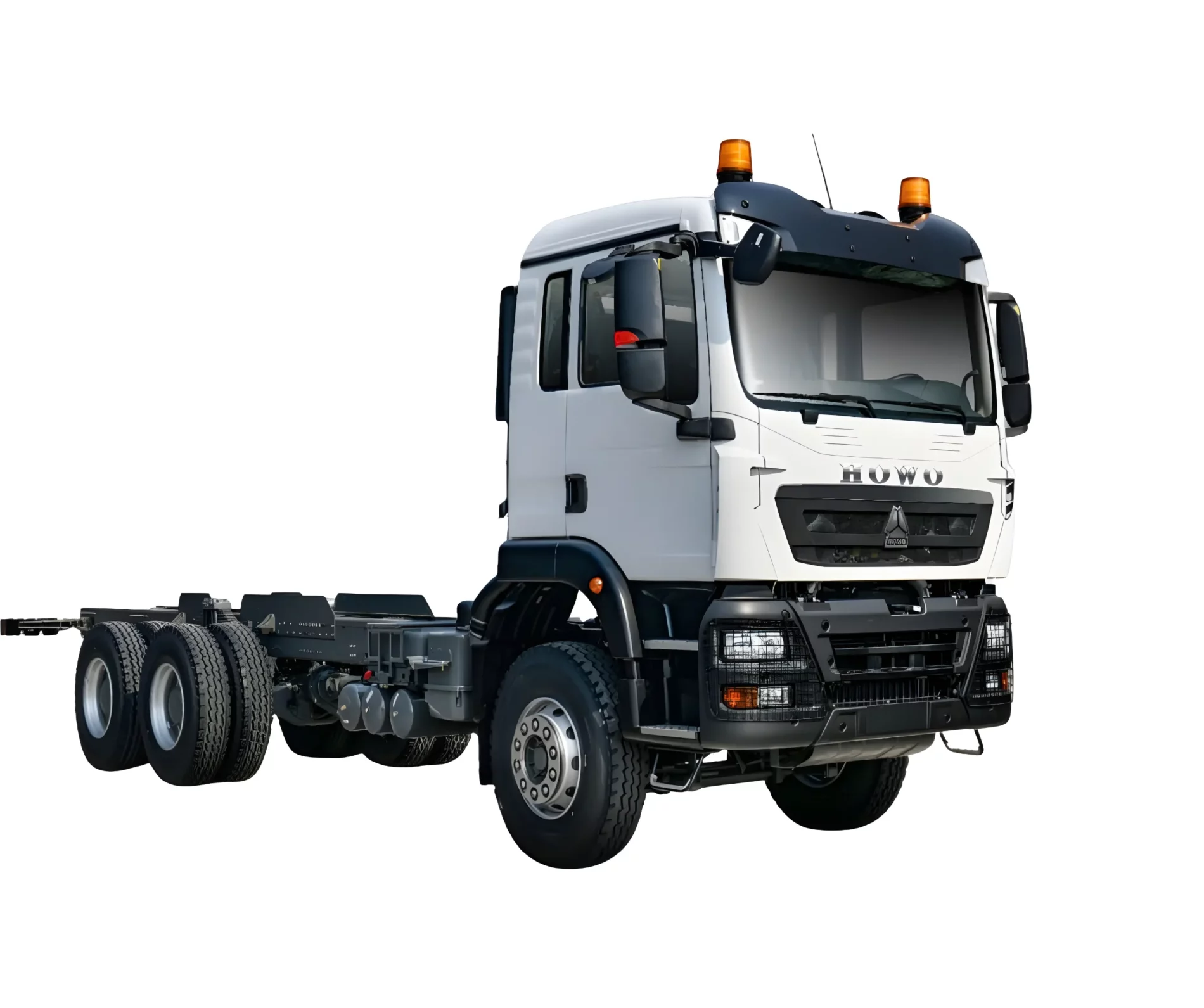

HOWO TX 6X4 Heavy Trucks
Built for demanding construction, mining, and heavy-haul applications, the HOWO TX 6X4 Heavy Truck delivers the perfect balance of power, reliability, and operational efficiency. Engineered by Sinotruk, the TX 6X4 is designed to tackle tough terrains while maximizing load capacity, making it an indispensable partner for heavy-duty transport operations.
Key Performance Highlights
- Powerful Engine Performance: Equipped with a high-output diesel engine, delivering exceptional horsepower
- Durable & Robust Construction: Features a reinforced multi-layer frame and heavy-duty suspension system.
- Smooth & Precise Handling: The 12-speed HW19712 transmission combined with hydraulic power steering ensures seamless gear shifts
- Driver Comfort & Safety: The spacious H78L High Roof Cab includes two sleepers, full air-conditioning, and an adjustable steering system, ensuring drivers remain comfortable
- Versatile Heavy-Duty Capability: Designed for maximum payload efficiency
Description
Powerful Engine Performance
Equipped with a high-output diesel engine, delivering exceptional horsepower
| Engine | Engine model: WD615.47/D10.38-50/WP10.380 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 371-380hpat 2200 rpm Maximum torque: 1500-1600Nm at 1100-1600rpm Displacement: 9.726L |
| Transmission | Model: HW19710, 10 forward and 2 reverse |
| Front Axle | Model: VGD95, drum type brake, 9.5T, German technology |
| Rear Axle | Model: MCX16, drum type brake, 16T×2, Double reduction with differential locks between wheels and axles, German technology |
| Chassis | Frame: Double layer with section of 300*80*(8+8)mm suspension: semi-elliptic leaf springs； Fuel tank: with 400L fuel tank |
| Steering | BOSCH, Hydraulic steering with power assistance |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS |
| Wheel & Tire | Tire: 315/80R22.5 tubeless Tire Rims: 9.0-22.5 |
| Driver's cab | TX-F Long cab, with one sleeper and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, electric window lifter, with AC |
Wheelbase: 5825+1350 mm
Front wheel track: 2040 mm
Rear wheel track: 1850 mm
Front overhang: 1500 mm
Rear overhang: 3025 mm
Approach angle(°): 24 mm
Departure angle(°): 12 mm
Permissible loading capacity on chassis: 37000 kg
Curb weight: 13000 kg
Gross vehicle weight: 50000 kg
Front axle loading capacity: 900 kg
Rear axle loading capacity: 16000 x 2 kg
