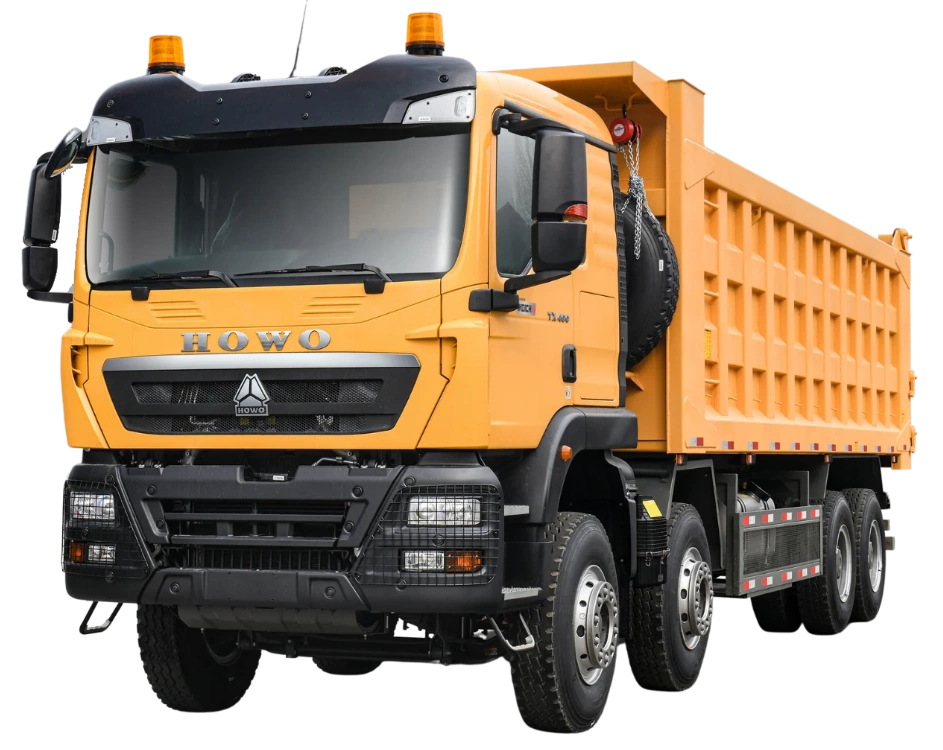

English HOWO TX 8X4 Heavy Truck
Engineered with unmatched strength and reliability
The ideal choice for heavy-duty hauling, mining, and industrial applications.
With Sinotruk’s advanced engineering, the MAX 8X4 delivers superior power, durability, and efficiency
Description

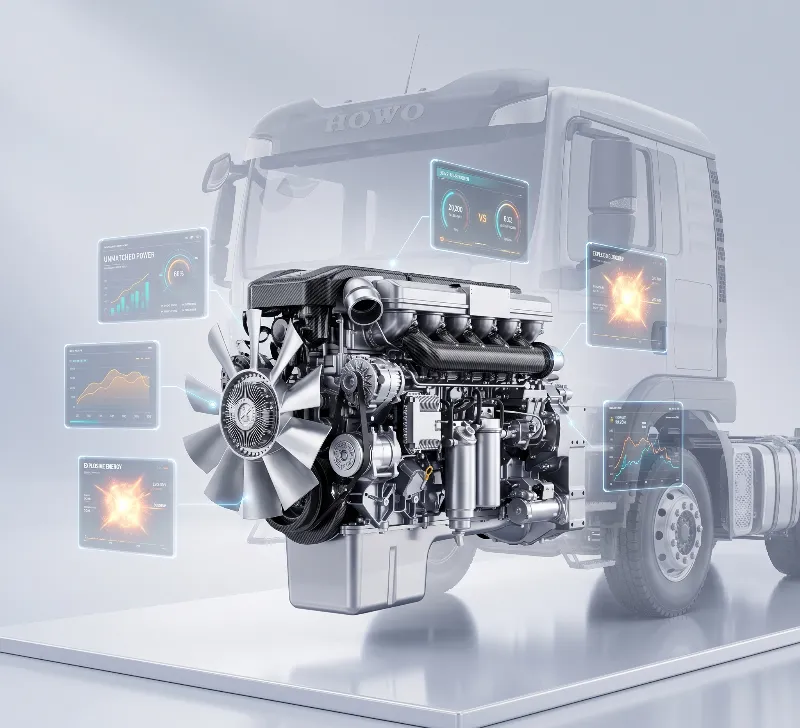

Unmatched Power
Equipped with a high-performance WP12 diesel engine

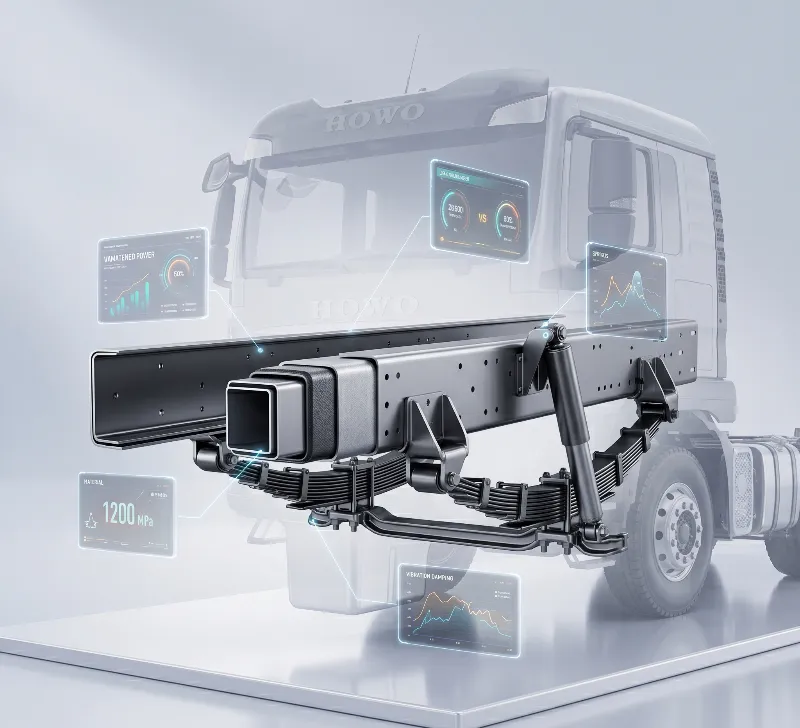

Rugged Durability
Features a reinforced multi-layer frame and heavy-duty suspension system.

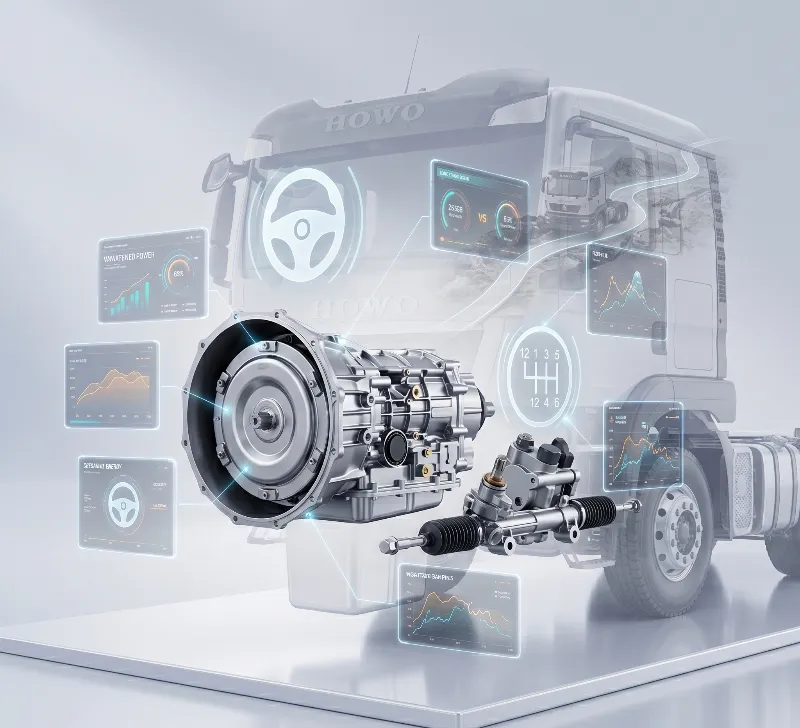

Precision Handling
Paired with a 12-speed HW19712 transmission and hydraulic power steering.

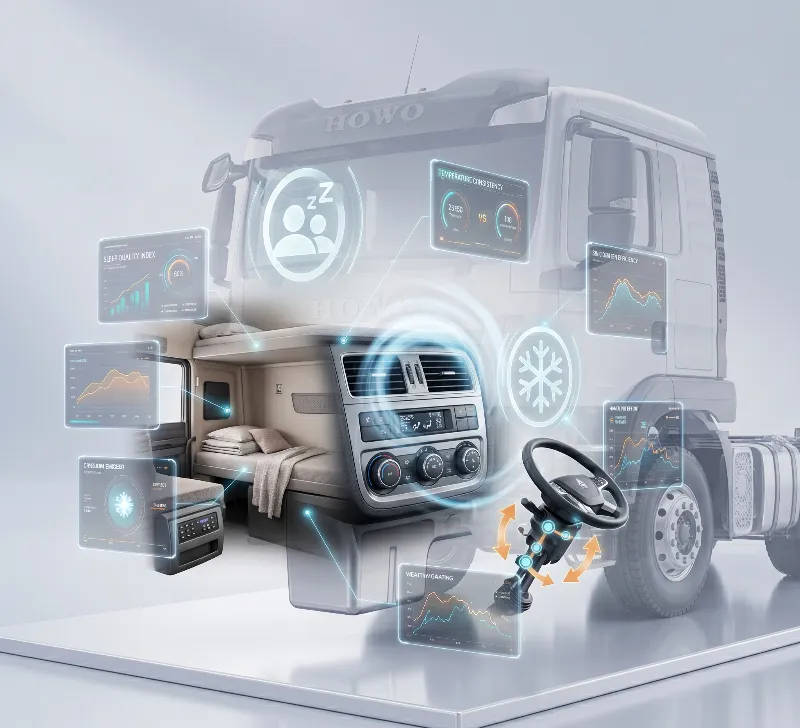

Driver-Centric Comfort
The H78L High Roof Cab offers two sleepers, full air-conditioning, and an adjustable steering system.
Technical Specifications
| Engine | Engine model: WP12.430 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 430hp(316Kw) at 1900 rpm Maximum torque: 1900Nm at 1000-1400rpm Displacement: 11.596L Bore*stoke: 126mm×155mm |
| Transmission | Model: HW19712, 12 forward and 2 reverse, with PTO |
| Front Axle | Model: VGD95, drum type brake, 9.5T, German technology |
| Rear Axle | Model: MCX16, drum type brake, 16T×2, Double reduction with differential locks between wheels and axles, German technology |
| Chassis | Frame: Double layer with section of 300*80*(8+8)mm Front suspension: semi-elliptic leaf springs Fuel tank: with 400L fuel tank, with locking fuel cap |
| Steering | BOSCH, Hydraulic steering with power assistance |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS |
| Wheel & Tire | Tire: 12.00R20 |
| Driver's cab | TX-U high roof cab, with two sleepers and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, electric window lifte, with AC |
Wheelbase: 1950+3825+1350 mm
Front wheel track: 2048mm
Rear wheel track: 1850 mm
Front overhang: 1500 mm
Rear overhang: 1000 mm
Approach angle(°): 25 mm
Departure angle(°): 47 mm
Body Size: 7600*2300*1500mm;
Permissible loading capacity on chassis: 50000 kg
Curb weight: 20000 kg
Gross vehicle weight: 70000 kg
Front axle loading capacity: 9500 x 2 kg
Rear axle loading capacity: 16000 x 2 kg
