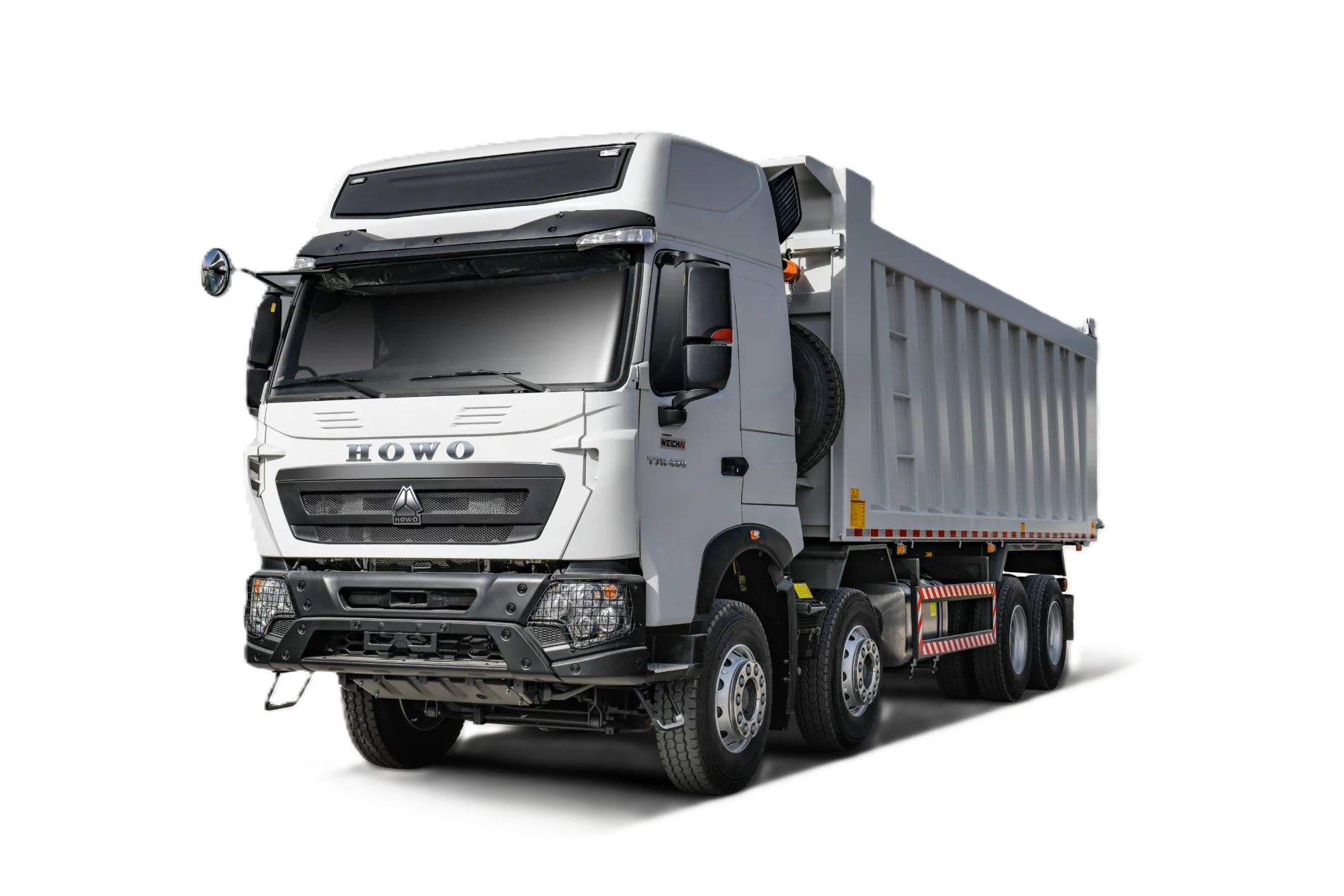

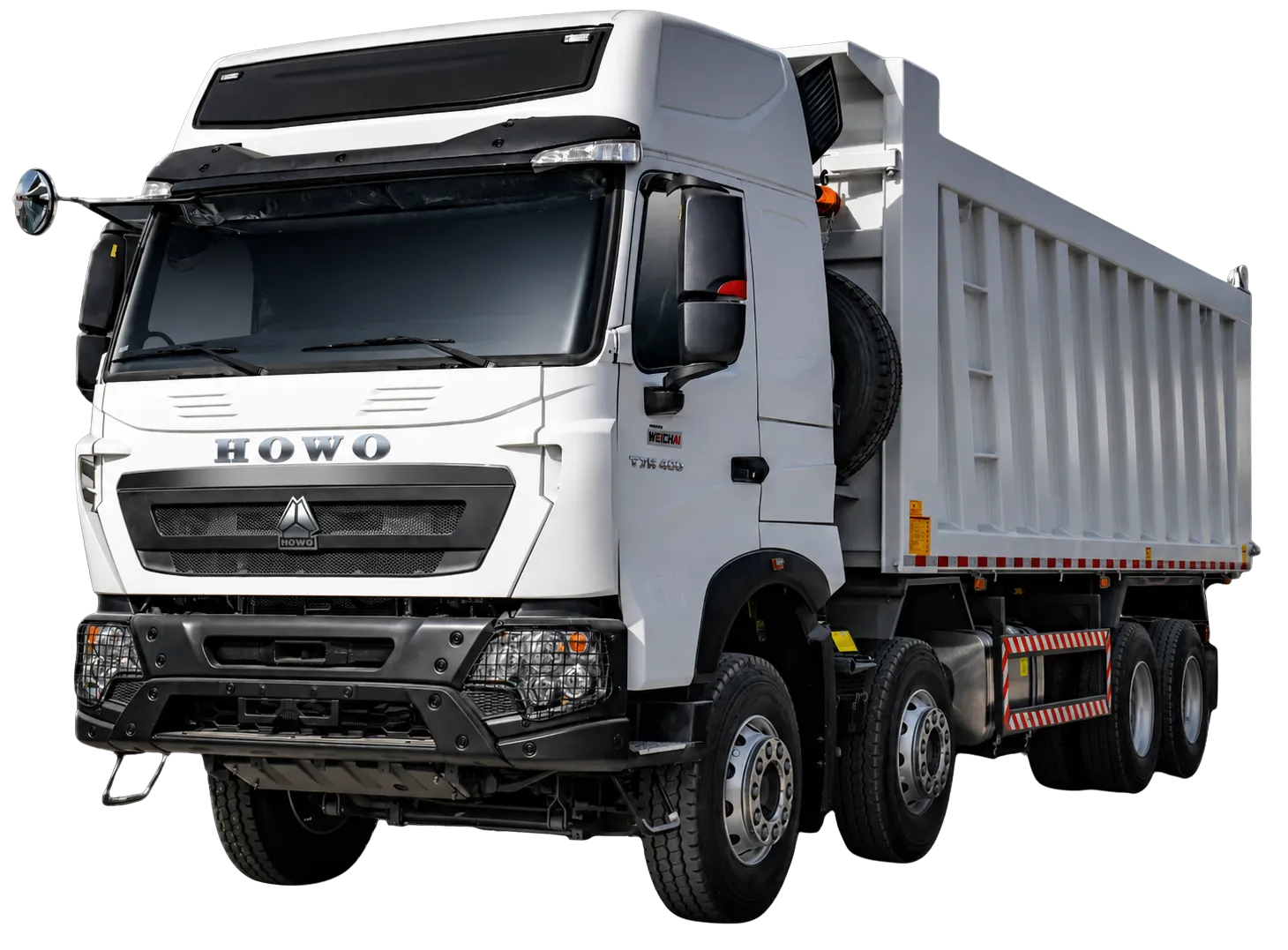

HOWO T7S 8X4 Heavy Truck
Take on the toughest terrains and heaviest loads with the HOWO T7S 8X4 Heavy Truck. Engineered by Sinotruk for maximum power, durability, and reliability, the T7S is designed to handle demanding construction, mining, and long-haul transport operations with confidence and efficiency.
Description
Robust Engine Power
Powered by a high-performance diesel engine delivering impressive horsepower and torque
Superior Durability
Built with a reinforced multi-layer frame and heavy-duty suspension system.
Precision Control
Equipped with a smooth-shifting 12-speed HW19712 transmission and hydraulic power steering, giving drivers optimal handling
Driver-Focused Comfort
he spacious H78L High Roof Cab features two sleepers, full air-conditioning, and an adjustable steering system
| Engine | Engine model: WP12.430 Diesel: 4 stoke diesel engine 6cylinder in-line with 4 valves, water cooling, turbo-charging& intercooling Maximum output: 430hp(316Kw) at 1900 rpm Maximum torque: 1900Nm at 1000-1400rpm Displacement: 11.596L Bore*stoke: 126mm×155mm |
| Transmission | Model: HW19712, 12 forward and 2 reverse, with PTO |
| Front Axle | Model: VGD95, drum type brake, 9.5T, German technology |
| Rear Axle |
Model: MCX16, drum type brake, 16T×2, Double reduction with differential locks between wheels and axles, German technology
|
| Chassis | Frame: Double layer with section of 300*80*(8+8)mm Front suspension:semi-elliptic leaf springs Fuel tank: with 400L fuel tank |
| Steering | BOSCH, Hydraulic steering with power assistance |
| Brakes | Service brake: dual circuit compressed air brake. Parking Brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust brake Without ABS |
| Wheel & Tire | Tire: 12.00R20 |
| Driver's cab |
T7S-V high roof cab, with two sleepers and two seats, adjustable steering wheel with various heights and angles. centralcontrol door lock, electric window lifter, with AC
|
Wheelbase: 1950+3825+1350 mm
Front wheel track: 2107 mm
Rear wheel track: 1871 mm
Front overhang: 1540 mm
Rear overhang: 1000 mm
Approach angle(°): 28 mm
Departure angle(°): 43 mm
Body Size: 7600*2300*1500mm;
Permissible loading capacity on chassis: 50000 kg
Curb weight: 20000 kg
Gross vehicle weight: 70000 kg
Front axle loading capacity: 9500 kg
Rear axle loading capacity: 16000 x 2 kg
